| 178 SERIES | |
|---|---|
FEATURES: Low cost, high performance stamped contacts. Provides proper mating while maximizing available board space. Metal shell for improved sheilding. Shells are tin plated and have ground indents to provide better grounding and additional retention. Fully intermateable with other D-Sub connectors.MATERIALS: Shell: Steel, zinc with tin plating. Insulator: Glass-filled thermoplastic, U.L. rated 94V-0. Stamped contacts: Brass. Plating: Gold flash on entire contact.(Consult Beckwith Electronics for other plating options). |

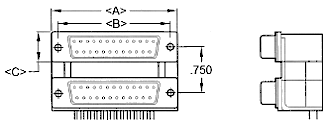

Right Angle Dual Ports D-Sub Connector (.750 Spacing)  |
| Ordering Information See hardware table for hardware options Consult Beckwith Electronics for special combinations |
|||||||
|---|---|---|---|---|---|---|---|
| Position | Part Numbers | Dimensions | |||||
| Male/ Male |
Male/ Female |
Female/ Female |
Female/ Male |
A | B | C | |
| 9 | 178-009-612-XX1 | 178-009-412-XX1 | 178-009-512-XX1 | 178-009-312-XX1 | 1.204 | .984 | .494 |
| 30.58 | 24.99 | 12.55 | |||||
| 15 | 178-015-612-XX1 | 178-015-412-XX1 | 178-015-512-XX1 | 178-015-312-XX1 | 1.535 | 1.312 | .494 |
| 38.98 | 33.32 | 12.55 | |||||
| 25 | 178-025-612-XX1 | 178-025-412-XX1 | 178-025-512-XX1 | 178-025-312-XX1 | 2.078 | 1.850 | .494 |
| 52.78 | 46.99 | 12.55 | |||||
| 37 | 178-037-612-XX1 | 178-037-412-XX1 | 178-037-512-XX1 | 178-037-312-XX1 | 2.724 | 2.50 | .494 |
| 69.18 | 63.50 | 12.55 | |||||
