NorComp
| 176 SERIES | |
|---|---|
FEATURES: Available in 5 industry sizes/positions (9,15, 25, 37, 50). Available in industry standard footprint. Available with 2 different mounting options. Tin or Yellow chromate shells available. Tin shells have indents to provide grounding and additional retention. Non-removable machined contacts for high reliability.MATERIALS: Shell: Steel, zinc plated with yellow chromate or tin plating. Insulator: Glass-filled thermoplastic. U.L. rated 94V-0. Machined Contacts: Male pins - Brass. Female pins - phosphor bronze. Plating: Gold flash on entire contact.(Contact Beckwith Electronics for other plating options). |
Right Angle D-Sub Connectors (.545 footprint)  |
| Ordering Information See hardware table for hardware options |
||||||
|---|---|---|---|---|---|---|

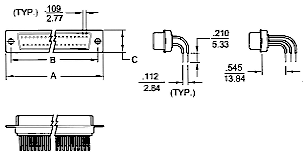

| Position | Part Numbers | Dimensions Male & Female |
||||
| Tin Shell |
Yellow Chromate |
A | B | C | ||
| 9 | Male | 176-009-112-XX1 | 176-009-111-XX1 | 1.213 | .984 | .494 |
| Female | 176-009-212-XX1 | 176-009-211-XX1 | 30.81 | 24.99 | 12.55 | |
| 15 | Male | 176-015-112-XX1 | 176-015-111-XX1 | 1.541 | 1.312 | .494 |
| Female | 176-015-212-XX1 | 176-015-211-XX1 | 39.14 | 33.32 | 12.55 | |
| 25 | Male | 176-025-112-XX1 | 176-025-111-XX1 | 2.088 | 1.852 | .494 |
| Female | 176-025-212-XX1 | 176-025-211-XX1 | 53.04 | 47.04 | 12.55 | |
| 37 | Male | 176-037-112-XX1 | 176-037-111-XX1 | 2.729 | 2.50 | .494 | Female | 176-037-212-XX1 | 176-037-211-XX1 | 69.32 | 63.50 | 12.55 |
| 50 | Male | 176-050-112-XX1 | 176-050-111-XX1 | 2.635 | 2.406 | .605 |
| Female | 176-050-212-XX1 | 176-050-211-XX1 | 66.92 | 61.11 | 15.37 | |
