| 174 SERIES | |
|---|---|
FEATURES: Available in 5 industry sizes/positions (9,15, 25, 37, 50). Available in industry standard footprint. Available with 2 different mounting options. Tin or Yellow Chromate shells available. Tin shells have indents to provide grounding and additional retention. Non-removable machined contacts for high reliability.MATERIALS: Shell: Steel, zinc plated with yellow chromate or tin plated. Insulator: Glass-filled thermoplastic. U.L. rated 94V-0. Machined Contacts: Male pins - Brass. Female pins - phosphor bronze. Plating: Gold flash on entire contact.(Contact Beckwith Electronics for plating options).NOTE: Available in .318" and .590" footprint with and without stablizer bar. (Consult Beckwith Electronics). |

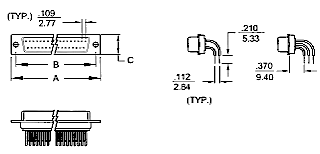

Right Angle D-Sub Connectors (.370 footprint)  |
| Ordering Information See hardware table for hardware options |
||||||
|---|---|---|---|---|---|---|
| Position | Part Numbers | Dimensions Male & Female |
||||
| Tin Shell |
Yellow Chromate |
A | B | C | ||
| 9 | Male | 174-009-112-XX1 | 174-009-111-XX1 | 1.213 | .984 | .494 |
| Female | 174-009-212-XX1 | 174-009-211-XX1 | 30.81 | 24.99 | 12.55 | |
| 15 | Male | 174-015-112-XX1 | 174-015-111-XX1 | 1.541 | 1.312 | .494 |
| Female | 174-015-212-XX1 | 174-015-211-XX1 | 39.14 | 33.32 | 12.55 | |
| 25 | Male | 174-025-112-XX1 | 174-025-111-XX1 | 2.088 | 1.852 | .494 |
| Female | 174-025-212-XX1 | 174-025-211-XX1 | 53.04 | 47.04 | 12.55 | |
| 37 | Male | 174-037-112-XX1 | 174-037-111-XX1 | 2.729 | 2.50 | .494 |
| Female | 174-037-212-XX1 | 174-037-211-XX1 | 66.92 | 63.50 | 12.55 | |
| 50 | Male | 174-050-112-XX1 | 174-050-111-XX1 | 2.635 | 2.406 | .605 |
| Female | 174-050-212-XX1 | 174-050-211-XX1 | 69.92 | 61.11 | 15.37 | |
