112 SERIES | |
---|---|
FEATURES:![]() ![]() ![]() ![]() MATERIALS: |

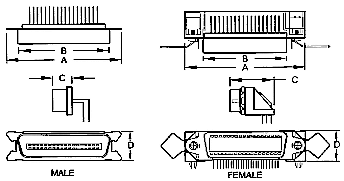

.085" Ribbon Type Connector Right Angle ![]() |
Ordering Information | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Part Numbers | Dimensions | |||||||||
Position | 4-40 Threads | Board Locks |
A | B | C | D | ||||
Male | Female | Male | Female | Male | Female | |||||
36 | Male | 112-036-113-001 | 112-036-113-491 | 2.441 | 2.661 | 1.943 | 1.925 | .504 | .969 | .610 |
Female | 112-036-213-001 | 112-036-213-491 | 62.00 | 67.60 | 49.35 | 48.90 | 12.80 | 24.61 | 15.50 | |
50 | Male | 112-050-113-001 | 112-050-113-491 | 3.047 | 3.260 | 2.538 | 2.520 | .504 | .969 | .610 |
Female | 112-050-213-001 | 112-050-213-491 | 77.40 | 82.80 | 64.47 | 64.00 | 12.80 | 24.61 | 15.50 |
