| 110 SERIES | |
|---|---|
FEATURES: Available in 2 industry sizes/positions (36, 50). D-Shape polarized mating face. Solder cup or IDC connector, hardware and backshell supplied in kit. Accepts a wide variety of cable types. Rugged design and quick release have proven effective in areas of repeatable cycling. Consult Beckwith Electronics for tooling.MATERIALS: Shell: Steel with Nickel plating. Insulator: Glass-filled thermoplastic, U.L. rated 94V-0. Contacts: Copper Alloy.(Contact Beckwith Electronics for plating options). |
.085" Ribbon Type Connector\ Backshell Kit  |
| Ordering Information Consult Beckwith Electronics for other sizes |
|||||||||
|---|---|---|---|---|---|---|---|---|---|

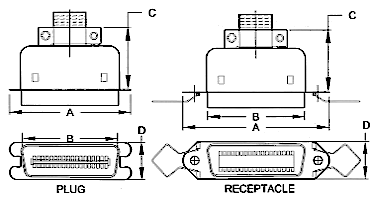

| Part numbers | Dimensions | ||||||||
| Position | Solder Cup |
(24-26 AWG) IDC |
A | B | C | D | |||
| Male | Female | Male | Female | ||||||
| 36 | Male | 110-036-103-001 | 110-036-193-001 | 2.431 | 2.665 | 1.935 | 1.925 | 1.624 | .622 |
| Female | 110-036-203-001 | 110-036-293-001 | 61.74 | 67.69 | 49.14 | 48.90 | 41.25 | 15.79 | |
| 50 | Male | 110-050-103-001 | 110-050-193-001 | 3.026 | 3.259 | 2.531 | 2.520 | 1.730 | .622 |
| Female | 110-050-203-001 | 110-050-293-001 | 76.86 | 82.77 | 64.28 | 64.00 | 43.95 | 15.79 | |
