Positioner / Spring Tools
The Acu-Min® Positioner / Spring Tools are designed for manipulating springs and other small parts in restricted spaces. Each tool is manufactured from the finest steel, hardened, and nickel plated (*1860 & 1861 are Stainless Steel), and are available individually or in sets packaged in vinyl pouches.
| Individual Positioner / Spring Tools | |||
|---|---|---|---|
| Style | Description | OAL | Stock No. |
| A | Heavy Spring Tool with Pull Hook | 6" | 51-1851 76-1851 |
| B | Heavy Spring Tool with Push Hook | 6" | 51-1852 76-1852 |
| C | Heavy Spring Tool with Pull Hook | 9 1/2" | 51-1855 76-1855 |
| D | Adjusting Spring Tool with Pull Hook | 6 1/2" | 51-1860 76-1860 |
| E | Adjusting Spring Tool with Push/Pull Hook | 6 1/2" | 51-1861 76-1861 |
| F | Light Spring Tool with Pull Hook | 6 7/8" | 51-1853 76-1853 |
| G | Light Spring Tool with Push Hook | 6 7/8" | 51-1854 76-1854 |
| H | General Purpose Spring Tool with Pull Hook | 7 1/4" | 51-1858 76-1858 |
| I | Very Fine Spring Tool with Pull Hook | 7 1/4" | 51-1859 76-1859 |
| J | Spring Tool with Hook & Lifter | 8 1/2" | 51-1850 76-1850 |
| K | Spring Tool with Push/Pull & Pull Hook | 7" | 51-1856 76-1856 |
| Positioner / Spring Tools Sets | |||
| Each Set Contains | Description | Stock No. | |
| J,A,B,H | 4 pc Positioner Set | 58-7588 | |
| J,K,F,G | 4 pc Positioner Set | 58-7589 | |
| J,D,E,H | 4 pc Positioner Set | 58-7590 | |
| J,A,E,H | 4 pc Positioner Set | 58-7591 | |
| J,D,B,H | 4 pc Positioner Set | 58-7592 | |

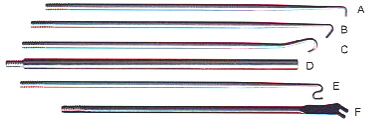

| 8 Piece Acu-Min® Interchangeable Threaded Positioner Set
One Handle, Two Extensions and Five Stainless Steel tips, packaged in a 5 3/8" high x 3/4" dia. tube. | |||||
|---|---|---|---|---|---|
| 5 Threaded Tool Tips, 2 Extensions & One Handle | OAL | Material | Repalcement Parts | Complete Kit 8 Pieces | |
| A | 90o Narrow Pull Hook | 4" | Stainless Steel | 49-8250 | 55-1857 |
| B | Very Fine Pull Hook | 4.25" | Stainless Steel | 49-8252 | |
| C | Offset Pull Hook | 4.25" | Stainless Steel | 49-8251 | |
| D | 2 Extensions | 3.875" | Nickel-Plated Steel | 49-8200 | |
| E | Light Push / Pull Hook | 4.25" | Stainless Steel | 49-8254 | |
| F | 30o Flattened Lifter | 4" | Stainless Steel | 49-8253 | |
| G | Handle | 4.125" | Nickel-Plated Steel | 49-8212 | |
| Set of 4 Spring Positioners | ||||
|---|---|---|---|---|
 | 4 Hardened Steel, Plated Spring Tools | OAL | Replacement Number | Vinyl Pouch |
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-1850 | 58-7588 | |
| Offset Pull Hook | 7.25" | 51-1858 | ||
| Heavy Pull Hook, Loop Handle | 6" | 51-1851 | ||
| Heavy Push / Pull Hook, Loop Handle | 6" | 51-1852 | ||
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-1850 | 58-7589 | |
| Light Pull Hook | 6.875" | 51-1853 | ||
| Light Push Hook | 6.625" | 51-1854 | ||
| Pull Hook & Push / Pull Hook Combo | 7" | 51-1856 | ||
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-1850 | 58-7590 | |
| Offset Pull Hook | 7.25" | 51-1858 | ||
| Adjusting Pull Hook | 6.5" | 51-1860 | ||
| Adjusting Push / Pull Hook | 6.5" | 51-1861 | ||
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-1850 | 58-7591 | |
| Offset Pull Hook | 7.25" | 51-1858 | ||
| Adjusting Push / Pull Hook | 6.5" | 51-1861 | ||
| Heavy Pull Hook, Loop Handle | 6" | 51-1851 | ||
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-1850 | 58-7592 | |
| Offset Pull Hook | 7.25" | 51-1858 | ||
| Adjusting Pull Hook | 6.5" | 51-1860 | ||
| Heavy Pull Hook, Loop Handle | 6" | 51-1851 | ||
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-1850 | 58-7593 | |
| Heavy Pull Hook, Loop Handle | 6" | 51-1851 | ||
| Heavy Push / Pull Hook, Loop Handle | 6" | 51-1852 | ||
| Light Pull Hook | 6.875" | 51-1853 | ||
 | ||
|---|---|---|
| Type | OAL | Stock Number |
| Light Pull Hook | 6.875" | 51-1853 76-1853 |
| Light Push / Pull Hook | 6.275" | 51-1855 76-1855 |
| Adjusting Pull Hook | 6.5" | 51-1860 76-1860 |
| Adjusting Push / Pull Hook | 6.5" | 51-1861 76-1861 |
| Light Pull Hook & Push / Pull Hook Combo | 7" | 51-1856 76-1856 |
| Fine Pull Hook | 7.25" | 51-1859 76-1859 |
| Offset Pull Hook | 7.25" | 51-1858 76-1858 |
| Heavy Pull Hook with Loop Handle | 6" | 51-1851 76-1851 |
| Heavy Push / Pull Hook with Loop Handle | 6" | 51-1852 76-1852 |
| 60o Double Bend Pick ("O-Ring" Pick) | 5.875" | 51-7587 76-7587 |
| Heavy Pull Hook, Knurled, with Loop Handle | 9.5" | 51-1855 76-1855 |
| 30o Lifter & Light Pull Hook Combo | 8.125" | 51-7587 76-7587 |
