Indek


For LSI/VLSI

Operating Temperature: 0 to 75C
Weight: 0.53(Oz)
Bearing : Ball Bearing
Blade Material: PBT UL 94-V-0
Heat Sink Material: ADC-12

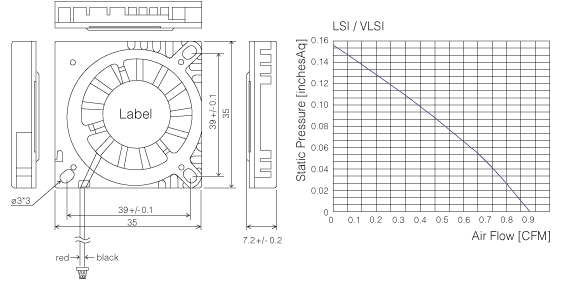

Model BP0535SA7 BP0545SA7
Size (mm) 35 x 35 x 7.4 45 x 45 x 7.7
Input Voltage (VDC) 5 5
Running Current (mA) 10 16
Power Consumption (W) 0.5 0.8
Noise (1m) (dBA) 20.5 22
Rotation Speed (rpm) 5000 4200
Free Airflow (CFM) 0.67 1.4
Static Pressure (mm-H2O) 3.92 4.0
