Indek


Discontinued for reference only

AC Fan S SERIES

AC FAN
Operating Temp. Range: -30~+70C
Impedance Protected
Bearing : Two Ball Bearings
Housing : Aluminum Die-cast
Fan Blade : Steel

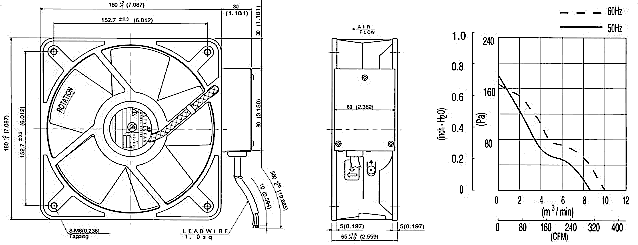

180 x 180 x 65mm

Model S18F10-M
S18F15-M
S18F20-M
S18F23-M
Frame Size (mm) 180 x 180 x 65
Rated Volt (VAC) 100, 115, 200, 230
Freq. (Hz) 50/60
Rated Input (W) 40/50
Max. Air Flow (CFM) 303.7/353.1
Max. Static Prs. (Inch Aq) 0.709/0.669
Noise (1m) (dB(A)) 63/67
Speed (rpm) 2750/3100
