Hirschmann

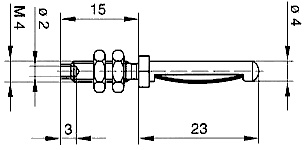

Laboratory Equipment 4 mm VST 20
Description
Fully mating connector as built-in pin, solder connection up to maximum cable cross-section of 2 mm2. Nickel-plated brass contact material.

Rated voltage60 V DC
Rated current16 A
Volume resistance3 m Ohms
Temperature range-25°C...+100°C
Type of connectionsoldered
Packaging quantity100 pieces
Order No.930050-000
