Hirschmann


Laboratory Equipment 4 mm KB 20
Description

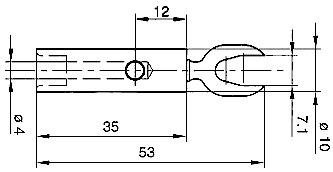

Cable lug with insulating sleeve, 4 mm diameter transverse hole and socket for 4 mm diameter plug connection. For connecting to bolts from 4 mm to 7 mm diameter. Nickel-plated brass contact material.

Rated voltage60 V DC
Rated current30 A
Volume resistance3 m Ohms
Temperature range-25°C...+70°C
Type of connection4 mm diameter socket
Packaging quantity50 pieces
Order No.930110-100 (black)
930110-101 (red)
