Hirschmann


Laboratory Equipment 4 mm AGF 20
Description

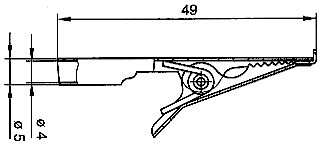

Nickel-plated steel crocodile clip. The special shape allows clamping of both extremely fine and thick wires. Maximum bolt diameter 10 mm. 4 mm diameter socket connection and solder connection possible.

Rated voltage60 V DC
Volume resistance15 m Ohms
Temperature range-25°C...+100°C
Type of connection4 mm diameter socket/soldered
Maximum clamping range10 mm
Packaging quantity100 pieces
Order No.930120-000
