Hirschmann


Laboratory Equipment 4 mm PRUF 10
Description

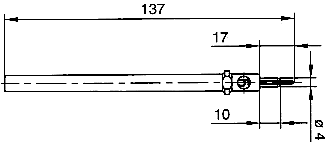

Dual function test probe. The slender spring steel pin can penetrate insulation + oxide layers. The test probe can be plugged into a 4 mm diameter socket using the multiple-spring wire. The screw fastening tip has a solder connection for a maximum cable cross-section of 3 mm2.

Rated voltage60 V DC
Volume resistance50 m Ohms
Temperature range-25°C...+80°C
Type of connectionsoldered
Test proberigid
Packaging quantity20 pieces
Order No.930227-100 (black)
930227-101 (red)
