Hirschmann


Laboratory Equipment 4 mm PKNI 20 B
Description
Pole terminal with claw edge, captive insulated head and insulating ring. 4 mm diameter nickel-plated, brass threaded bolt with 2.6 mm diameter transverse hole. For insulated non-rotating installation in equipment chassis and switchpanels up to a 3.5 mm wall thickness.

Rated voltage60 V DC
Rated current63 A
Volume resistance2 m Ohms
Temperature range-25°C...+100°C

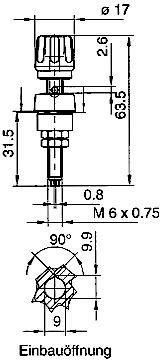

Type of connectionSee diagram
Packaging quantity100 pieces
Order No.930144-100 (black)
930144-101 (red)
