Laboratory Equipment 4 mm | PKI 10 A |
---|---|
Description Pole terminal with claw edge and captive insulated head and insulating ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm. |
Rated voltage | 60 V DC |
Rated current | 16 A |
Volume resistance | 2 m Ohms |
Temperature range | -25°C...+100°C |
Type of connection | M 4 thread |

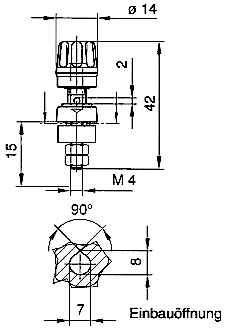

Installation hole | See diagram |
Packaging quantity | 100 pieces |
Order No. | 930103-100 (black) 930103-101 (red) 930103-102 (blue) 930103-103 (yellow) 930103-104 (green) 930103-188 (yellow/green) |
