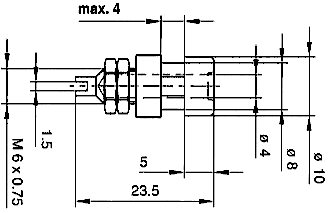

Laboratory Equipment 4 mm BIL 30
Socket with insulated head and ring for installation in equipment chassis and switchpanels with a wall thickness up to 4 mm wall thickness. 4 mm diameter nickel-plated brass socket, with solder connection.

Rated voltage60 V DC
Rated current16 A
Volume resistance5 m Ohms
Temperature range-25°C...+85°C
Type of connectionsoldered
Installation holeØ 8 mm
Packaging quantity200 pieces
Order No.930166-100 (black)
930166-101 (red)
