Hirschmann

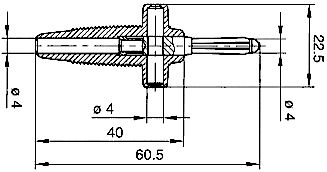

Laboratory Equipment 4 mm BULA 300 K
Description
Multiple-spring wire plug, shatter-proof, flexible insulating sleeve with transverse hole. Lateral supports provide protection against contact when plugged in at right angles. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm2.

Rated voltage60 V DC
Rated current30 A
Volume resistance3 m Ohms
Temperature range-25°C...+70°C
Type of connectionsoldered
Packaging quantity50 pieces
Order No.931667-100 (black)
931667-101 (red)
931667-102 (blue)
931667-103 (yellow)
931667-104 (green)
