Hirschmann

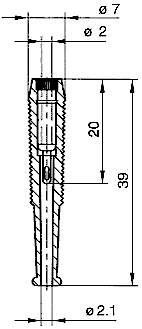

2 mm miniature laboratory equipment MKU 1
Description
2 mm diameter miniature coupling, insulated, nickel-plated copper beryllium contact spring with solder connection. Flexible, shatter-proof insulating sleeve. For making up connecting leads with a maximum external diameter of 2 mm.

Rated voltage60 V DC
Rated current6 A
Volume resistance6 m Ohms
Temperature range-20°C...+60°C
Type of connectionsoldered
Packaging quantity100 pieces
Order No.930320-100 (black)
930320-101 (red)
