Hirschmann


E Series M12
IEC 60947-5-2		 Appliance
sockets and connectors
for front panel mounting
    Product features
  1. usage in housings of control systems, switch cabinets, sensors and actuators (combined front panel and circuit board installation especially for industrial mounting)

    Variations
  1. cable sockets for combined front panel and circuit board installation
  2. cable plug for flange mounting

    Basic data
  1. Protection class IP 68 (IEC 60529)
  2. type of termination solder

Further information
See technical data in the catalog Circular connectors for automation technique DS 280 490-450 or contact Beckwith Electronics

Example for placing orders: 933279-100 ELKE 412 FM

Poles Socket
ELKE		 Plug
ELST		 Operating
Voltage		 Comments
Contacts
tin-plated		 Contacts
gold-plated		 Contacts
tin-plated		 Contacts
gold-plated
4 412 FM
(Vertical)		 Discontinued
for reference only
933279-100
 933279-200     UC 150V ( ~ )
412 FM H
(Horizontal)		 Discontinued
for reference only
933395-100
 933395-200
412 FA     932328-206   UC 150V ( ~ ) with flat gasket (only EST 412 FA)
5 512 FM 933551-100       UC 50V ( ~ )
512 FM H 933821-100

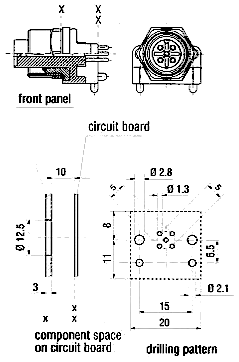

ELKE...FM

ELKE...FM H

ELST...412 FA
