Features
Color-coded for easy identification; color indicates number of positions
Touch-Safe; wires are safely shrouded by connector housing
Clear housing provides visual confirmation and individually held wires eliminate loose connections
Built-in strip guide shows how much wire to strip
Made with highly conductive copper
Accepts solid and tinned stranded wire 22-12AWG
Safer and easier than traditional wire nuts
Greatly reduces wiring time; no more twisting or taping!
Compact size; enables perfect connections in tight spaces
OSHA-recommended to reduce wrist and hand strain
Can be reused with wires larger than the ones previously used
Test slot provides convenient access for circuit testing
Multiple international and domestic agency approvals, including UL and CUL |
WPC300

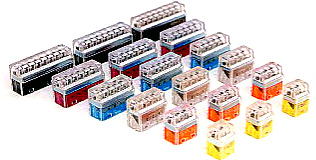

Color Coding Denotes Number of Positions
|
| Electrical |
|---|
| Applications: | Suitable for:
OEM lighting manufacturing
Appliances
Junction boxes
Control panels
Security/alarm systems
Prefabricated wiring systems
Lighting retrofit
Heating elements
Motor leads |
| Voltages: | VDE-AC, DC, 450V; UL-600V |
| Rated Current: | VDE-24A |
| Rated Voltage: | 600V for Building Wiring, 1000V for Lighting Fixtures |
| Wire Size: | 12-22 AWG |
| Operating Temperature: | VDE-110°C, UL-105°C |
| Working Temperature: | 105°C/221°F (UL) |
| Housing: | Polycarbonate, Flame-Retardant to UL 94V2 |
| Clamp Units: | Copper, Tin-Plated; Stainless Steel Spring; Zinc-Plated Steel Frame |
| Positions Available: | 2 to 6 & 8 |
| Glow Wire Tests: | VDE-850°C |
| Wire Stripping Length: | 11mm/0.4 inches |
UL Approved
Patents US 7255592 |
|
Built In Test Slot
Wire Stripping Guide
|
FASTER & SAFER:
No More Twisting or Taping!
Transparent, color-coded, reusable and easy to use.
Clear Connects provide visual confirmation for a perfect connection every time! |
| Part # | Color | Poles | Unit | A | B | C | D | E |
|---|
| WPC352 | Yellow | 2 | mm. | 19.00 | 11.75 | 10.45 | 8.70 | 0.90 |
|---|
| in. | 0.748 | 0.463 | 0.411 | 0.343 | 0.035 |
| WPC353 | Orange | 3 | mm. | 19.00 | 15.90 | 10.45 | 8.70 | 0.90 |
|---|
| in. | 0.748 | 0.626 | 0.411 | 0.343 | 0.034 |
| WPC354 | Clear | 4 | mm. | 19.00 | 20.05 | 10.45 | 8.70 | 0.90 |
|---|
| in. | 0.748 | 0.789 | 0.411 | 0.343 | 0.034 |
| WPC355 | Blue | 5 | mm. | 19.00 | 24.20 | 10.45 | 8.70 | 0.90 |
|---|
| in. | 0.748 | 0.953 | 0.411 | 0.343 | 0.034 |
| WPC356 | Purple | 6 | mm. | 19.00 | 28.35 | 10.45 | 8.70 | 0.90 |
|---|
| in. | 0.748 | 1.116 | 0.411 | 0.343 | 0.034 |
| WPC358 | Black | 8 | mm. | 19.00 | 36.65 | 10.45 | 8.70 | 0.90 |
|---|
| in. | 0.748 | 1.443 | 0.411 | 0.343 | 0.034 |
|
  Clear Connects are approved by many international
and domestic agencies, including:
VDE, FIMKO, DEMKO, KEMA, NEIVIKO,
SEIVIKO, cULus. CE, UL
|
|---|
