BlockMaster
Specifications
Features:
- PATENTED wire spring design.
- Same side button and wire entry, parallel to PCB.
- Available in several colors for coding positions to wire colors.
- 1 position modular blocks.
- 2 pins per pole.
- No exposed metal parts.
- Test points.
- Funnel shaped wire entry.
|
USL-5HB2 Series
|
| Electrical |
|---|
| Current: | 7A @300V |
| Wire range: | 16 to 26 AWG |
| Pin dimension: | 0.95mm x 0.65mm |
| Withstanding voltage: | <AC 2500V/min |
| IR: | >500M ohms (500V DC) |
| Operating temp: | -40°C to+100°C |
| Stripping length: | 5mm |
| PCB holes: | min 1.2mm |
| PCB thickness: | max 2.4mm |
| Materials |
|---|
| Housing: | Nylon 6, 6 (UL94V-0) |
| Contact plate: | Stainless steel (SUS304) |
| Spring: | Stainless steel (SUS304) |
| Terminal: | Brass, tin plated |
| Colors Available: | Gray (standard), for others see how to order |
Marking
Marking tabs available. Consult Beckwith Electronics.
 |
 |
 |  |

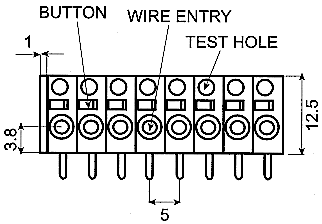

Dimensions
n=number of poles
L=(n-1) x 5 |  |
