BlockMaster
Specifications
Features:
- Economical wire protector style.
- Captive screws.
- 2 and 3 position modular.
- Machined stamped inserts.
- Phil/slot combo screw.
- Vertical style is PA001.
- Right angle style is PA002.
|
PA001/PA002 Series
|
| Electrical |
|---|
| Current: | 10A@300V |
| Wire range: | 14 to 26 AWG |
| Pin dimension: | .06mm x 1.1mm |
| CR: | <15m ohms |
| IR: | >500M ohms (500V DC) |
| Operating temp: | -35°C to+75°C |
| Stripping length: | 6.5mm |
| Torque: | 0.23Nm |
| PCB holes: | min 1.5mm |
| Materials |
|---|
| Housing: | Thermoplastic (UL94V-2) |
| Wire Protector: | Steel |
| Terminal: | Brass, Tin plated |
| Screw: | M2.5 steel, yellow chromated |
| Colors available: | Blue |
PA001 Series |
|---|
 |

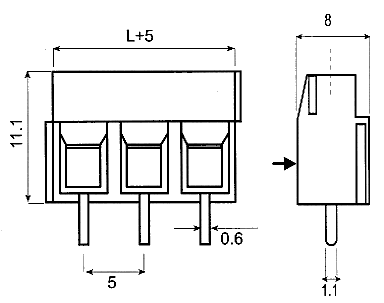

Dimensions
n=number of poles
L=(n-1) x 5 |  |
PA002 Series
|
|---|
 |  |
Dimensions
n=number of poles
L=(n-1) x 5 | |
Part Numbers
PA001-02P
PA001-03P
PA001-04P
PA001-05P
PA001-06P
PA001-07P
PA001-08P
PA001-09P
PA001-10P
PA001-11P
PA001-12P
PA001-13P
PA001-14P
PA001-15P
PA001-16P
PA002-02P
PA002-03P
PA002-04P
PA002-05P
PA002-06P
PA002-07P
PA002-08P
PA002-09P
PA002-10P
PA002-11P
PA002-12P
PA002-13P
PA002-14P
PA002-15P
PA002-16P
