BlockMaster
Specifications
Features:
- Dual tier barrier construction.
- Staggered pins.
- UL recognized.
- Clear hinged cover available.
- Available in 2 to 12, 20 or 30 pins per row.
|
HD74 Series
|
| Electrical |
|---|
| Current: | 15A @250V |
| Wire range: | 16 to 22 Sol |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >1000M Ohms (500V DC) |
| Operating temp: | -40°C to +110°C |
| Torque: | 7 lb-in |
| Materials |
|---|
| Housing: | PBT (UL94V-0) |
| Terminal: | Brass, tin plated |
| Screw: | M3 combo head w/captive sems plate |
| Screw material: | Steel, Ni plated |
| Cover material: | PC transparent |
| Positions available: | 2 to12, 20, 30 |
| Mounting ends: | Available |
 |
 |

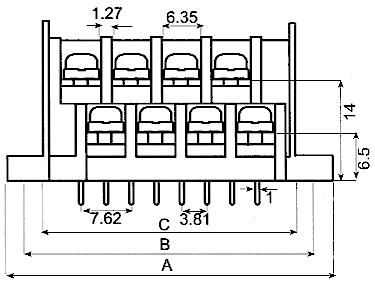

Dimensions
n=number of positions (per level)
A=(n x 7.62) + 25.3
B=(n x 7.62) + 16.8
C=(n x 7.62) + 10.4 |  |
Part Numbers
4DC-B01W-04
4DC-B01W-05
4DC-B01W-06
4DC-B01W-07
4DC-B01W-08
4DC-B01W-09
4DC-B01W-10
4DC-B01W-11
4DC-B01W-12
4DC-B01W-13
4DC-B01W-14
4DC-B01W-15
4DC-B01W-16
4DC-B01W-17
4DC-B01W-18
4DC-B01W-19
4DC-B01W-20
4DC-B01W-21
4DC-B01W-22
4DC-B01W-23
4DC-B01W-24
4DC-B01W-25
4DC-B01W-26
4DC-B01W-27
4DC-B01W-28
4DC-B01W-29
4DC-B01W-30
4DC-B01W-31
4DC-B01W-32
4DC-B01W-33
4DC-B01W-34
4DC-B01W-35
4DC-B01W-36
4DC-B01W-37
4DC-B01W-38
4DC-B01W-39
4DC-B01W-40
4DC-B01W-41
4DC-B01W-42
4DC-B01W-43
4DC-B01W-44
4DC-B01W-45
4DC-B01W-46
4DC-B01W-47
4DC-B01W-48
4DC-B01W-49
4DC-B01W-50
