BlockMaster


Specifications

Features:
  1. Miniature 6.35mm spacing saves board space.
  2. Regular barrier construction.
  3. Mounting ends available.
  4. Gold plated terminals available.
  5. 2 pin styles to choose from.
HD60 Series

Electrical
Current:10A @250V
Wire range:18 to 22 AWG
Withstanding voltage:2000V AC per min.
IR:>500M Ohms (500V DC)
Operating temp:-20°C to +110°C
Torque:7 lb-in
Materials
Housing:Thermoplastic (UL94V-0)
Terminal:Brass, tin plated
Screw:M3 combo head w/captive sems plate
Screw material:Steel, Ni plated
Positions available:2 to 27 with mounting ends
2 to 29 no mounting ends
Mounting ends:Available/ø3mm

StyleFrontSide
1

off-center
PC
2

off-center
solder tail

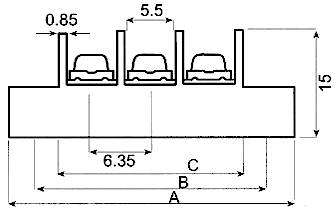

Dimensions
n=number of positions
A=(n x 6.35) + 13.7
B=(n+1) x 6.35
C=(n x 6.35) + 1

Part Numbers
HD601-02PH
HD602-02PH
HD601-03PH
HD602-03PH
HD601-04PH
HD602-04PH
HD601-05PH
HD602-05PH
HD601-06PH
HD602-06PH
HD601-07PH
HD602-07PH
HD601-08PH
HD602-08PH
HD601-09PH
HD602-09PH
HD601-10PH
HD602-10PH
HD601-11PH
HD602-11PH
HD601-12PH
HD602-12PH
HD601-13PH
HD602-13PH
HD601-14PH
HD602-14PH
HD601-15PH
HD602-15PH
HD601-16PH
HD602-16PH
HD601-17PH
HD602-17PH
HD601-18PH
HD602-18PH
HD601-19PH
HD602-19PH
HD601-20PH
HD602-20PH
HD601-21PH
HD602-21PH
HD601-22PH
HD602-22PH
HD601-23PH
HD602-23PH
HD601-24PH
HD602-24PH
HD601-25PH
HD602-25PH
HD601-26PH
HD602-26PH
HD601-27PH
HD602-27PH
HD601-28PH
HD602-28PH
HD601-02P
HD602-02P
HD601-03P
HD602-03P
HD601-04P
HD602-04P
HD601-05P
HD602-05P
HD601-06P
HD602-06P
HD601-07P
HD602-07P
HD601-08P
HD602-08P
HD601-09P
HD602-09P
HD601-10P
HD602-10P
HD601-11P
HD602-11P
HD601-12P
HD602-12P
HD601-13P
HD602-13P
HD601-14P
HD602-14P
HD601-15P
HD602-15P
HD601-16P
HD602-16P
HD601-17P
HD602-17P
HD601-18P
HD602-18P
HD601-19P
HD602-19P
HD601-20P
HD602-20P
HD601-21P
HD602-21P
HD601-22P
HD602-22P
HD601-23P
HD602-23P
HD601-24P
HD602-24P
HD601-25P
HD602-25P
HD601-26P
HD602-26P
HD601-27P
HD602-27P
HD601-28P
HD602-28P
