BlockMaster
Features:
|
DT65 Series
|
| Electrical | |
|---|---|
| Current: | 25A @300V |
| Wire range: | 12 to 22 AWG |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >1000M Ohms (500V DC) |
| Operating temp: | -40°C to +105°C |
| Torque: | 16 lb-in |
| Materials | |
| Housing: | Polyamide 6,6 (UL94V-0) |
| Terminal: | Brass, tin plated |
| Screw: | M4 combo head w/captive sems plate |
| Screw material: | Steel, Ni plated |
| Positions available: | 2 to 24 with mounting ends 2 to 26 no mounting ends |
| Mounting ends: | Available/ø3.6mm |
| Style | Front | Side |
|---|---|---|
| 01 centerline |
 |
 |
| 02 solder tail |
 |
 |
| 14 right angle |
 |
 |

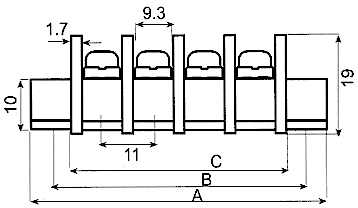

| Dimensions n=number of positions A=(n x 11) + 22 B=(n+1) x 11 C=(n x11) + 2 |  |
