BlockMaster


Specifications

Features:
  1. Regular barrier construction.
  2. Mounting ends available.
  3. UL and CSA recognized.
  4. 5 pin styles to choose from.
  5. Accepts #12 AWG.
DT35 Series


Electrical
Current:15A @300V
Wire range:12 to 22 AWG
Withstanding voltage:2000V AC per min.
IR:>1000M Ohms (500V DC)
Operating temp:-40°C to +105°C
Torque:12 lb-in
Materials
Housing:Polyamide 6,6 (UL94V-0)
Terminal:Brass, tin plated
Screw:M3 combo head w/captive sems plate
Screw material:Steel, Ni plated
Positions available:2 to 26 with mounting ends
2 to 28 no mounting ends
Mounting ends:Available/ø3.5mm


StyleFrontSide
01

centerline
PC

02

solder tail

07

off-center
PC

14

right angle
PC short
bend

25

right angle
PC long
bend

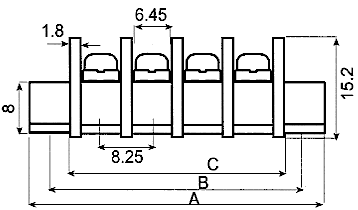

Dimensions
n=number of positions
A=(n x 8.25) + 16.5
B=(n+1) x 8.25
C=(n x 8.25) +2
