Aim Electronics

Discontinued for reference only

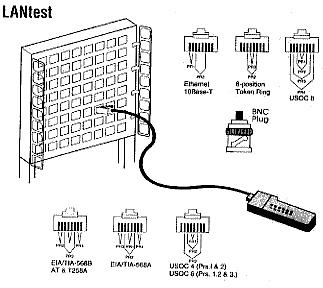

VOICE & DATA LANTEST NETWORK & MODULAR CABLE TESTER
LANtest is a newly designed and very practical tester that can easily read the correct pin configuration of 10 Base-T cable, Category 5, 10 Base-2 cable (coax), RJ45/RJ11 modular cables, 356A,. EIA/TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end. With the remote kit it can test cables installed up to 1,000 feet either on wall plates or patch panels. It is easy to verify the cable continuity, open, short and crossed pairs.

    Includes:
  1. 1 Master Box
  2. 1 Remote Box
  3. 2 BNC adaptor cable, 15cm
  4. 1 BNC M/M adaptor
  5. 1 RJ45 Modular cable, 6"
  6. Deluxe carrying bag
    Features
  1. Tests the correct pin configuration of 10Base-T, 10Base-2, Thin Ethernet cable, RJ45/RJ11 modular cables 356A, EIA/TIA-568-A/568B and Token Ring cable etc.
  2. Easy to verify cable continuity, opens, shorts reversed pairs.
  3. With remote kit it can remotely test cable up to 1000 ft away either on wall plate or patch panel.
  4. Can test the ground.
  5. Features auto or manual scan with pin-out LED indicators.
  6. A power switch is provided for conserving battery power.


Model: 24-517
MULTI-NETWORK PRO CABLE TESTER (Plug & Test)
The Multi-Network pro cable tester is an advanced design which simplifies the cable to be plugged and tested. It can test both 10Base-T and 10Base-2 Cable within a few seconds. Just plug both ends of the cable and, it automatically runs all tests with the Green and Red LED's in the master unit will show you the test results of continuity, open pairs, shorted pairs, crossed pairs or reversed pairs problems. With the remote unit, you can remotely test installed cables either on wall plates or patch panels. In addition, it can also test the ground wire.
    Features
  1. Plug and test, simplifies the cable checking.
  2. Can test either Category 3, Category 5 cable or 10Base-2 (Coax) cable.
  3. Can test cable continuity, open pairs, shorted pairs, and reversed pairs.
  4. Allows loop back test or remote test.
  5. All test results are displayed on the master unit.
  6. Grounding can be tested too.


Model: 24-518
