Discontinued for reference only
AIM's USB Hubs 30-3014 & 30-3017 provide the electronic interface between USB devices or Hubs to connect to an upstream USB HUB or HOST port. It is a complete USB 1.0 specification compatible device.
Features
- Self-powered USB HUB with a bus powered controller, supports both Full-Speed and Low-Speed devices.
- Connectivity behavior, device connect/disconnect detection.
- Bus fault detection and recovery.
- Power switching and status LED's.
- Power switch control and over current protection.
- USB 1.0 Specification compatibility.
USB HUBS
SPECIFICATION |
|---|
 Item No:
30-3014(4 port)
30-3017 (7 port)
|
|---|
| Power Consumption | DC 9V, 500 mA
30-3014 |
| Connectors Up Stream | 1 USB Series B Receptacle |
| Down Stream | 4 USP Series A Receptacle |
| LED | 1 Power, 4 port status |
| | 30-3017 |
| Connectors Up Stream | 1 USB Series B Receptacle |
| Down Stream | 7 USB Series A Receptacle |
| LED | 1 Power, 7 port status |
| Enclosure | METAL Case |
| Weight | 250g |
| Dimensions(LxWxH) | 100x130x35 (mm) |

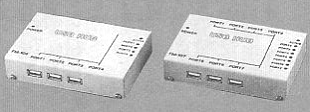

30-3014
30-3017

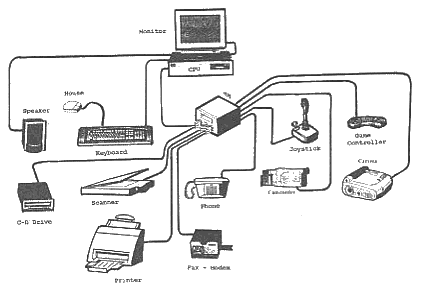

The Universal Serial Bus (USB), brings plug-and-play technology to the external input and output devices found on today's high performance personal computers. USB provides three advanced features.
- Ease of use through hot plugging and automatic configuration.
- Standardized connection points and simplified connector design.
- Simple expansion through the use of a tiered-star hub technology.
The newest USB technology provides "Plug and Play" capabilities for connecting PC's to peripheral equipment.
