Aim Electronics

VOICE & DATA

Discontinued for reference only

CABLE TESTERS

24-514

Multi-Modular Cable Tester Multi-Modular Cable Tester is applied to quickly test by auto scanning most modular cables, USOC4 / USOC6 / USOC8 terminating with RJ45, RJ12, and RJ11 modular plugs, wire continuity and miswiring. It can also be used for testing the cable crossed pinned or straight through. With the remote terminator, it can be further used in remote testing even if the cable has been already installed.
Testers Come In A Leather Zipper Pouch

24-516

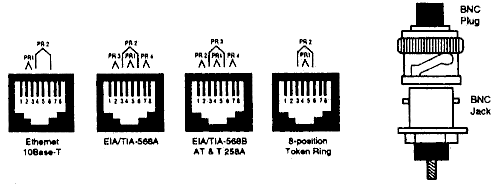

Enhanced Network Cable Tester Multi-Network Cable Tester is specified to quickly test by auto scanning the wires continuity, miswiring and polarization in your network cables. 10Base-T (UPT / STP) / 356A / TIA-568A / TIA 568B & Token Ring. By using the attached remote terminator, you can easily test the cable before or after the cables are installed. The Multi-Network Cable Tester also allows you to test the ground of Shielded Twisted Paired Cable.
Testers Come In A Leather Zipper Pouch

24-515
Multi-Network Cable Tester
Remote Tester for Your Network Cables
Multi-Network Cable Tester is designed to quickly test by auto scanning the wires continuity, miswiring and polarization in your network cables, thin Ethernet (BNC) / 10Base-T (UPT / STP) / 356A / TIA-568A / TIA 568B & Token Ring. By using the attached remote terminator, you can easily test the cable before or after the cables are installed. The Multi-Network Cable Tester also allows you to test the ground of Shielded Twisted Paired Cable. The Test Jacks are a BNC Female and a RJ45.
Testers Come In A Leather Zipper Pouch

24-510

Coaxial Cable Tester for BNC / TNC
Checks for Continuity, Shorts &
Open Terminations As the Ethernet network application is getting popular, this coaxial cable tester becomes necessary when you process the network installation. This cable tester can let you quickly know the coax cable (BNC, TNC) continuity, short and open. A terminator is included for testing when the cable has been already installed.
Testers Come In A Leather Zipper Pouch

24-513

Network Cable Tester It is designed to quickly test the most popular network cable wiring that uses twisted pair, such as 258A eight wire system specified by AT&T or 10BASE-T Ethernet Standard. Just press the button switch, then you will know the cable continuity. To learn more about the pin-out correction of each pair, it is equipped with a set of dip switch and jumpers, which allows you to test the pin-out status or rewire as you want by using jumper wires.
Testers Come In A Leather Zipper Pouch

24-512

Modular Cable Tester for RJ11 6x6
Checks for Cross or Straight Wired Cables This portable modular cable tester is used for quickly testing modular cable pins continuity and pin-out configuration, such as crossed wire or straight-through. The tester is also equipped with a set of dip switch and jumpers which not only allows you to check if the twisted pairs are miswired, but also can change the pin-out as you want.
Testers Come In A Leather Zipper Pouch

24-511
Modular Cable Tester for RJ45 8x8
Checks for Cross or Straight Wired Cables
Discontinued for reference only
Testers Come In A Leather Zipper Pouch

31-4190P    (Blister Pack)

Telephone Line Tester Discontinued for reference only
For Testing Continuity of Telephone & Data Lines Using RJ11/RJ45 and DEC type Modular Plug 9 Volt Battery Included.

31-4191P    (Blister Pack)

Telephone Line Tester Hand Held Instrument to test Telephone & Data Lines by identifying opens & shorts with a push of a button- 9 Volt Battery Included. For RJ11, RJ45 with speed adjustment for LED test speed. With Adaptor for 4 conductor Handset Plugs.

31-4192    (Blister Pack)

Telephone Line Tester For Testing remote Continuity of Telphone & Data Lines Using 4, 6 & 8 Cond. plugs. Test up to 10,000 ft. 1 Sec. test time 5 milliamp max. - 9 Volt Battery Included

46-1001    (Blister Pack)

Pocket Tester Multi-Function Electrical & Electronic Tester - Built in circuit test AC-Voltage, DC-Voltage, Continuity Test with buzzer sound and a sensitivity switch. Battery Included.

46-1006    (Blister Pack)

Pocket Tester 3 1/2" Digit Pocket DMN
Resistance - 200 Ohm to 2000 K Ohm
DC Current - 200 UA to 10 A
DC Voltage - 200 MV to 1000 V
AC Voltage - 200 V to 750 V
Diode - Audible Continuity Test
One rotary switch operation
Low cost pocket size 2 3/4" x 5"
All ranges overload protected
Comes with a complete set of test leads
9 Volt Battery Included

CABLE TESTERS
24-514 Multi-Modular Cable Tester	Multi-Modular Cable Tester is applied to quickly test by auto scanning most modular cables, USOC4 / USOC6 / USOC8 terminating with RJ45, RJ12, and RJ11 modular plugs, wire continuity and miswiring. It can also be used for testing the cable crossed pinned or straight through. With the remote terminator, it can be further used in remote testing even if the cable has been already installed. Testers Come In A Leather Zipper Pouch


24-516 Enhanced Network Cable Tester	Multi-Network Cable Tester is specified to quickly test by auto scanning the wires continuity, miswiring and polarization in your network cables. 10Base-T (UPT / STP) / 356A / TIA-568A / TIA 568B & Token Ring. By using the attached remote terminator, you can easily test the cable before or after the cables are installed. The Multi-Network Cable Tester also allows you to test the ground of Shielded Twisted Paired Cable. Testers Come In A Leather Zipper Pouch

24-515 Multi-Network Cable Tester	Remote Tester for Your Network Cables Multi-Network Cable Tester is designed to quickly test by auto scanning the wires continuity, miswiring and polarization in your network cables, thin Ethernet (BNC) / 10Base-T (UPT / STP) / 356A / TIA-568A / TIA 568B & Token Ring. By using the attached remote terminator, you can easily test the cable before or after the cables are installed. The Multi-Network Cable Tester also allows you to test the ground of Shielded Twisted Paired Cable. The Test Jacks are a BNC Female and a RJ45. Testers Come In A Leather Zipper Pouch


24-510 Coaxial Cable Tester for BNC / TNC Checks for Continuity, Shorts & Open Terminations	As the Ethernet network application is getting popular, this coaxial cable tester becomes necessary when you process the network installation. This cable tester can let you quickly know the coax cable (BNC, TNC) continuity, short and open. A terminator is included for testing when the cable has been already installed. Testers Come In A Leather Zipper Pouch

24-513 Network Cable Tester	It is designed to quickly test the most popular network cable wiring that uses twisted pair, such as 258A eight wire system specified by AT&T or 10BASE-T Ethernet Standard. Just press the button switch, then you will know the cable continuity. To learn more about the pin-out correction of each pair, it is equipped with a set of dip switch and jumpers, which allows you to test the pin-out status or rewire as you want by using jumper wires. Testers Come In A Leather Zipper Pouch

24-512 Modular Cable Tester for RJ11 6x6 Checks for Cross or Straight Wired Cables	This portable modular cable tester is used for quickly testing modular cable pins continuity and pin-out configuration, such as crossed wire or straight-through. The tester is also equipped with a set of dip switch and jumpers which not only allows you to check if the twisted pairs are miswired, but also can change the pin-out as you want. Testers Come In A Leather Zipper Pouch

24-511 Modular Cable Tester for RJ45 8x8 Checks for Cross or Straight Wired Cables	Discontinued for reference only Testers Come In A Leather Zipper Pouch


31-4190P (Blister Pack) Telephone Line Tester	Discontinued for reference only For Testing Continuity of Telephone & Data Lines Using RJ11/RJ45 and DEC type Modular Plug 9 Volt Battery Included.

31-4191P (Blister Pack) Telephone Line Tester	Hand Held Instrument to test Telephone & Data Lines by identifying opens & shorts with a push of a button- 9 Volt Battery Included. For RJ11, RJ45 with speed adjustment for LED test speed. With Adaptor for 4 conductor Handset Plugs.

31-4192 (Blister Pack) Telephone Line Tester	For Testing remote Continuity of Telphone & Data Lines Using 4, 6 & 8 Cond. plugs. Test up to 10,000 ft. 1 Sec. test time 5 milliamp max. - 9 Volt Battery Included

46-1001 (Blister Pack) Pocket Tester	Multi-Function Electrical & Electronic Tester - Built in circuit test AC-Voltage, DC-Voltage, Continuity Test with buzzer sound and a sensitivity switch. Battery Included.

46-1006 (Blister Pack) Pocket Tester	3 1/2" Digit Pocket DMN Resistance - 200 Ohm to 2000 K Ohm DC Current - 200 UA to 10 A DC Voltage - 200 MV to 1000 V AC Voltage - 200 V to 750 V Diode - Audible Continuity Test One rotary switch operation Low cost pocket size 2 3/4" x 5" All ranges overload protected Comes with a complete set of test leads 9 Volt Battery Included
