TOOLS

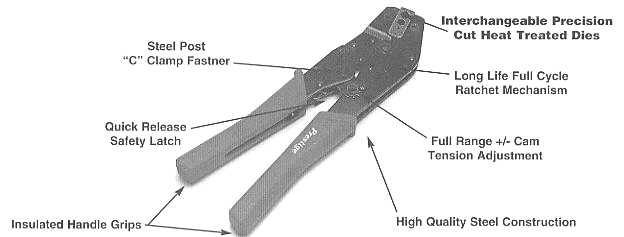

Prestige  RATCHET CRIMP TOOLS
"PROFESSIONAL SERIES"
5 Year Warranty

    Features
  1. Performs Both Electrical and Mechanical Crimps
  2. Each Tool Comes Complete with a Crimp Die
  3. Replacement Dies are available for all Prestige Ratchet Crimp Tools
Tool Stock # Cable Size Description Size Die Stock #
24-300PRG-58, RG-59 TFE2 pc. BNC & TNCDiscontinued
for reference only
99-DC-1
24-301PRG-59, 622 pc. BNC & TNCDiscontinued
for reference only
99-DC-2
24-302PBelden 82812 pc. BNC & TNCDiscontinued
for reference only
99-DC-3
24-303PTimes, MI-20402 pc. BNC & TNCDiscontinued
for reference only
99-DC-6
24-320PRG-58 TFE, RG-59
TFE, RG-62 TFE		2 pc. BNC & TNCDiscontinued
for reference only
99-DC-11
Discontinued
for reference only

24-321P

RG-62 pc. BNC & TNCDiscontinued
for reference only
99-DC-5
24-304PRG-55, 58, 58TFE, 59
TFE, 62TFE, 141, 142
223, 303, 400 		3 pc. BNC & TNC
Mini - UHF		Discontinued
for reference only
99-MC-1
24-305PRG-59, 62, 8x
140, 210, 450		3 pc. BNC & TNC
Mini - UHF		Discontinued
for reference only
99-MC-2
24-306PRG-122, 174, 179
180, 187, 188, 195
316, 8218, 34M
Belden 89907		3 pc. BNC & TNCDiscontinued
for reference only
99-MC-12
24-322PRG-63 pc. BNC & TNCDiscontinued
for reference only
99-MC-5
24-318PBelden 82813 pc. BNC & TNCDiscontinued
for reference only
99-MC-3
24-307
24-308		RG-58
RG-59, 62		UHF
UHF		99-U-1*
Discontinued
for reference only
99-U-2*
24-310RG-8
Diamond Cut		UHFDiscontinued
for reference only
99-U-8*
Discontinued
for reference only

24-312

RG-58, 59, 8x, 450NDiscontinued
for reference only
99-N-1*
Discontinued
for reference only

24-313P

RG-8
Hex Cut		NDiscontinued
for reference only
99-N-8*
All dies listed above, are interchangeable with this tool frame except where noted*.

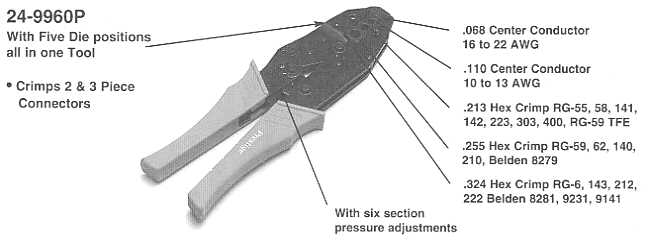

Large frame dies not interchangeable with the other tools- see 24-9960P(Discontinued for reference only) tool frame.

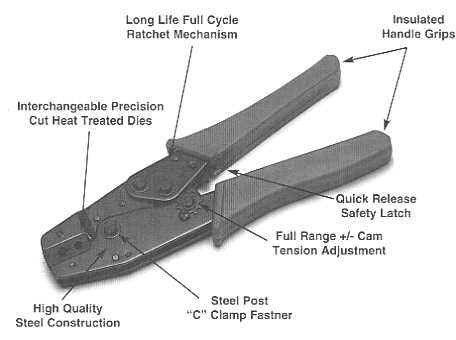

Prestige  RATCHET CRIMP TOOLS
"STANDARD SERIES"
5 Year Warranty

    Features
  1. Each Tool is Attractively Blister Packed
  2. Each Tool Comes Complete with Crimp Dies
  3. Replacement Dies are available for all Prestige Ratchet Crimp Tools
Tool Stock # Cable Size Description Size Die Stock #
Discontinued
for reference only

24-8856P

RG6, RG-8
RG-59, RG-62		Crimps BNC-TNC 3
pc. connectors
with standard rings		Discontinued
for reference only
99-8856
24-8857PRG-58U, RG-58AU
RG-174, RG-139
RG-185, RG-188
RG-316		Crimps BNC - TNC
3 pc. connectors
with standard rings		Discontinued
for reference only
99-8857
24-8858PRG-58, RG-58AU
RG-59 Teflon
RG-62 Teflon		 Crimps BNC-TNC 2 & 3
pc. connectors also
crimps 1/2" ring F
connectors		Discontinued
for reference only
99-8858
24-8859PRG-59, RG-62
Belden 8281		Crimps BNC & TNC
2 & 3 pc. connectors
with standard &
dual crimp rings		Discontinued
for reference only
99-8859
24-8789PRG-58, RG-59,
RG-62, RG-58TFE.
RG-59TFE,
RG-62TFE		Crimps BNC & TNC
2 & 3 pc. connectors
with standard crimp rings
by Amp, Amphenol, Kings		Discontinued
for reference only
99-8789
Discontinued
for reference only

24-8786P

RG-6, RG-58Crimps 2 pc. BNC & TNC connectors with standard
ring by Amphenol, Kings		Discontinued
for reference only
99-8786
24-9858PRG-58, RG-59 TFECrimps 2pc. BNC
& TNC connectors		Discontinued
for reference only
99-9958
24-9859PRG-59, 62Crimps 2 pc. BNC
& TNC Connectors		Discontinued
for reference only
99-9859
24-9958PRG-58, RG-58TFE,
RG-59TFE, RG-141, RG-142, 223, 400 , RG-303, RG-55		Crimps 3 pc.
BNC & TNC &
Mini-UHF connectors		Discontinued
for reference only
99-9958
24-9959PRG-59, 62, RG-450
Proflex, RG-8x		Crimps 3 pc.
BNC & TNC &
Mini-UHF connectors		Discontinued
for reference only
99-9959
24-9912PRG-122, 180, 34M
RG-195, 8218, RG-174
188, RG-179, 187, 316		Crimps 3 pc. BNC & TNC
Connectors		Discontinued
for reference only
99-9912
24-8644POpen Barrel Crimper
V.35 Contacts		Crimps 10-22 ga.,
AWG Non-insulated
open barrel crimp
connectors, D-sub
mini pins & sockets		Discontinued
for reference only
99-8644
24-8622PInsulated Terminal CrimperCrimps 10-22 ga.,
AWG fully insulate
terminals ovalized crimp		Discontinued
for reference only
99-8622*
Discontinued
for reference only

24-8623P

Non-Insulated
Terminal Crimper		Crimps 14-22 ga.,
non-insulated terminals		Discontinued
for reference only
99-8623
All dies listed above, are interchangeable with this tool frame except where noted*

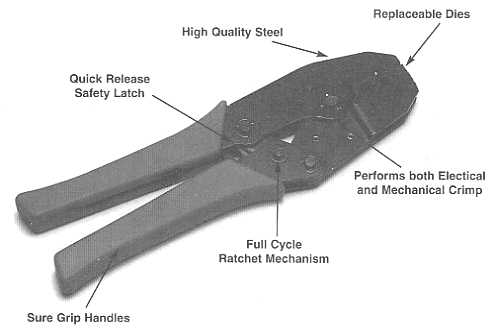

Prestige  RATCHET CRIMP TOOLS
ADJUSTABLE STANDARD SERIES
5 Year Warranty

Tool Stock # Cable Size Description Hex Size Replacement Die
Stock #
24-8860PRG-58, 59, 62
& RG-59TFE, RG-58TFE
RG-62, 141, 142, 223,
303, 400, RG-8x, 140,
210, 450		For 3 pc. Crimp Connectors.060
.210
.255		Discontinued
for reference only
99-8860
24-8861PRG-58, & RG-59TFE
RG-58 & RG-59TFE, RG-62		For 2 pc. Crimp Connectors
For 3 pc. Crimp Connectors
F Connectors		.060
.210
.320		Discontinued
for reference only
99-8861

Prestige  UNIVERSAL CRIMP TOOL
2 Year Warranty
