R.F. CONNECTORS & ADAPTORS

MCX SERIES

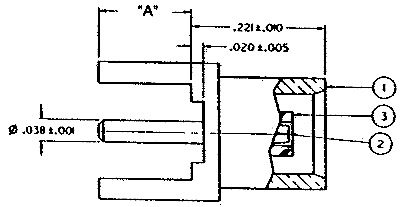

MCX Straight PC Mount Jack
Part No.Dim. "A"
28-5080.155 +/-.015
28-5081.110 +/-.015

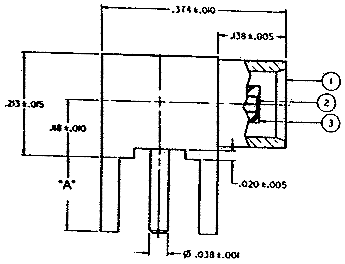

MCX Right Angle PC Mount Jack
Part No.Dim. "A"
28-5082.155 +/-.015
28-5083.068 +/-.015

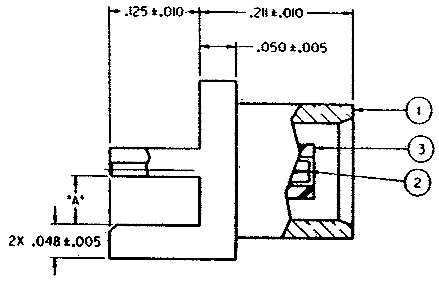

MCX End Launch Jack
Part No.
28-5084

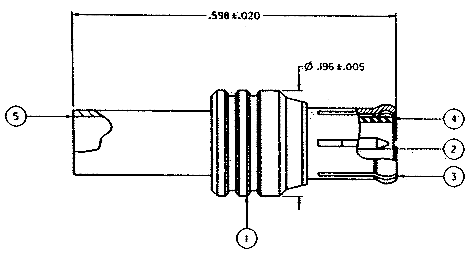

MCX Straight Cable Plug
Part No.Cable Hex Crimp Size
28-5085RG 178 / .105
28-5086RG 316 / .128

MCX Right Angle Cable Plug
Part No.Cable Hex Crimp Size
28-5087RG 178 / .105
28-5088RG 316 / .128

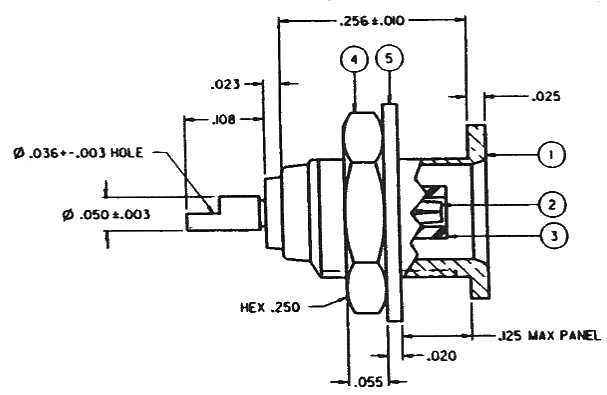

MCX Front Mount Bulkhead Jack Receptacle
Part No.
28-5089
