R.F. CONNECTORS & ADAPTORS
| SMA CONNECTORS & ADAPTORS | |||
|---|---|---|---|
 Male 3 Piece Crimp Solder Center Contact |
Bulk | Cable Type | Packaged |
| 29-3100 | RG 58A/U - 141 | 29-3100P | |
| 29-3103 | RG 174, 188, 316 | 29-3103P | |
 SMA Female to TNC Female |
Bulk | Packaged | |
| 29-3861 | 29-3861P | ||
| Discontinued for reference only
|
Bulk | Packaged | |
| 29-3825 | 29-3825P | ||
 SMA Male to BNC Female |
Bulk | Packaged | |
| 29-3855 | 29-3855P | ||
 SMA Female to UHF Male |
Bulk | Packaged | |
| Discontinued for reference only 29-3845 |
29-3845P | ||
 SMA Female to BNC Female |
Bulk | Packaged | |
| 29-3835 | 29-3835P | ||
 SMA Female to N Male |
Bulk | Packaged | |
| 29-3840 | 29-3840P | ||
| SMA FOR FLEXIBLE CABLE | ||
|---|---|---|
| Straight Crimp Type Plug Solder or Crimp Contact |  |
|
| Part No. | Cable Type | VSWR & Freq. Range |
| 28-5020 Discontinued | RG-161/U, 174, 188, 316 | 1.15 + .021 (GHz) 0-12.4 GHz |
| 28-5021 Discontinued | RG-58/U, 141, 303 | 1.15 + .01 1 (GHz) 0-12.4 GHz |
| 28-5022 Discontinued | RG-55/U, 142, 223, 400 | 1.15 + .01 1 (GHz) 0-12.4 GHz |
| Straight Crimp Type Jack Solder or Crimp Contact |  |
|
| Part No. | Cable Type | VSWR & Freq. Range |
| 28-5026 Discontinued | RG-161/U, 174, 188, 316 | 1.15 + .031 (GHz) 0-12.4 GHz |
| 28-5027 Discontinued | RG-58/U, 141, 303 | 1.15 + .01 1 (GHz) 0-12.4 GHz |

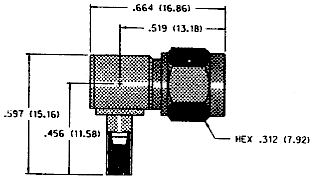

| Right Angle Crimp Type Plug |  |
|
| Part No. | Cable Type | VSWR & Freq. Range |
| 28-5023 Discontinued | RG-161/U, 174, 188, 316 | 1.15 + .031 (GHz) 0-12.4 GHz |
| 28-5024 Discontinued | RG-58/U, 141, 303 | 1.15 + .021 (GHz) 0-12.4 GHz |
| 28-5025 Discontinued | RG-55/U, 142, 223, 400 | 1.15 + .021 (GHz) 0-12.4 GHz |
| Straight Crimp Type Bulkhead Jack Solder or Crimp Contact |  |
|

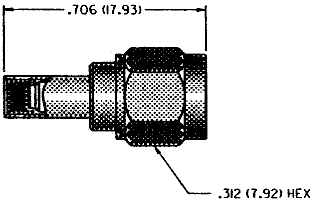

| Part No. | Cable Type | VSWR & Freq. Range |
| 28-5028 Discontinued | RG-161/U, 174, 188, 316 | 1.15 + .021 (GHz) 0-12.4 GHz |
| 28-5029 Discontinued | RG-58/U, 141, 303 | 1.15 + .01 1 (GHz) 0-12.4 GHz |
| SMA FOR SEMI-RIGID CABLE | ||
| Straight Solder Type Plug with contact, captive nut Thick Wall (.086) | |
|
| Part No. | Cable Type | VSWR & Freq. Range |
| 28-5000 Discontinued | .086 Semi Rigid "A"=.045 (10.29) |
0-18 GH 1.07 + .008 1 (GHz) 26.5 GHz 1.35 Max |
| Straight Solder Type Plug without contact, slide-on nut Thick Wall |  |
|
| Part No. | Cable Type | VSWR & Freq. Range |
| 28-5001 Discontinued | 1.41 Semi Rigid | 1.035 + .005 (GHz) 0-26.5 GHz |
| SMA PC MOUNT | ||

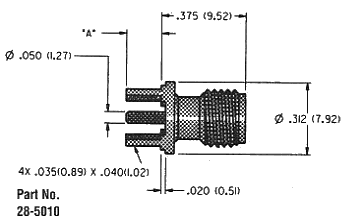

| Straight Jack Receptacle |  |
|
| Part No. | ||
| 28-5010 Discontinued | ||

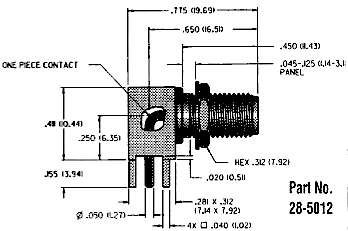

| Right Angle Bulkhead Jack Receptacle |  |
|
| Part No. | ||
| 28-5012 Discontinued | ||
| Right Angle Jack Receptacle |  |
|
| Part No. | ||
| 28-5011 Discontinued | ||

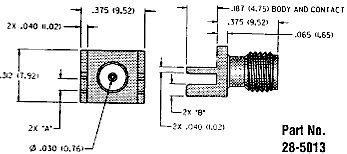

| End Launch Jack Receptacle Round Contact |  |
|
| Part No. | ||
| 28-5013 Discontinued | ||
| SMA BULKHEAD AND PANEL MOUNT | ||

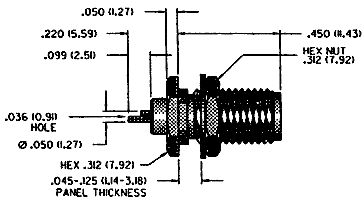

| Rear Mount Bulkhead Jack Receptacle |  |
|
| Part No. | ||
| 28-5030 Discontinued | ||

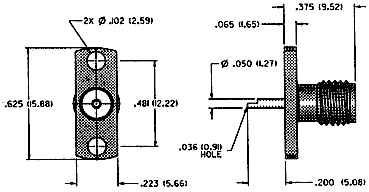

| 2 Hole Flange Mount Jack Receptacle |  |
|
| Part No. | ||
| 28-5031 Discontinued | ||

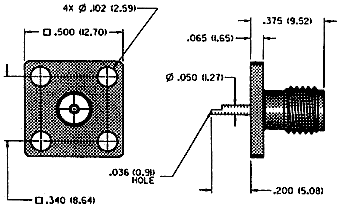

| 4 Hole Flange Mount Jack Receptacle |  |
|
| Part No. | ||
| 28-5032 Discontinued | ||
| SMA IN-SERIES ADAPTORS | ||
| Jack - Jack |  |
|
| Part No. | ||
| 28-5040 Discontinued | ||

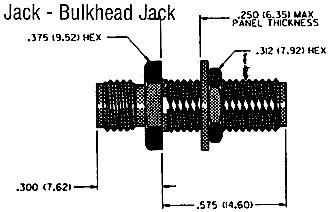

| Jack - Bulkhead Jack |  |
|
| Part No. | ||
| 28-5041 Discontinued | ||

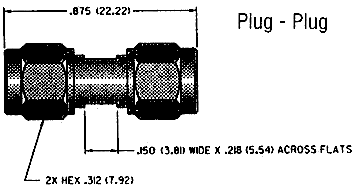

| Plug - Plug |  |
|
| Part No. | ||
| 28-5042 Discontinued | ||
| SMB FOR FLEXIBLE CABLE | ||
| Right Angle Crimp Type Bulkhead Jack |  |
|
| Part No. | Cable Type | |
| 28-5050 Discontinued | RG-16/U, 174, 179, 187, 188, 316 | |
| Straight Crimp Type Plug Die Cast |  |
|
| Part No. | Cable Type | |
| 28-5051 Discontinued | RG-16/U, 174, 179, 187, 188, 316 | |
| SMB FOR SEMI-RIGID CABLE | ||
| Right Angle Crimp Type Plug Die Cast |  |
|
| Part No. | Cable Type | |
| 28-5052 Discontinued | RG-16/U, 174, 179, 187, 188, 316 | |
| Right Angle Plug |  |
|
| Part No. | Cable Type | |
| 28-5060 Discontinued | .086 Semi-Rigid | |
| SMB PC MOUNT | ||

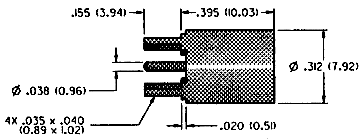

Straight Plug Receptacle |  |
|
| Part No. | ||
| 28-5070 Discontinued | ||

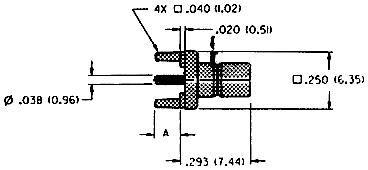

| Straight Jack Receptacle Die Cast |  |
|
| Part No. | Leg Length Dim. "A" | |
| 28-5071 Discontinued | .155 (3.94) | |
| 28-5072 Discontinued | .095 (2.41) | |
| Right Angle Jack Receptacle - Die Cast |  |
|
| Part No. | ||
| 28-5073 Discontinued | ||

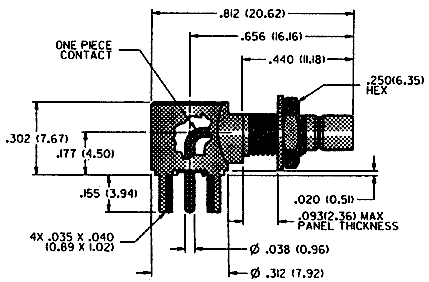

| Right Angle Bulkhead Jack Receptacle |  |
|
| Part No. | ||
| 28-5074 Discontinued | ||

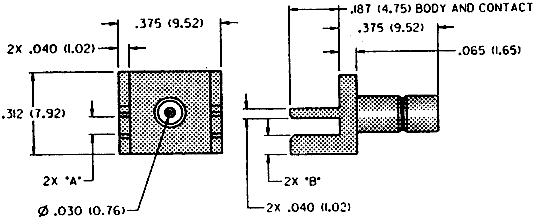

| End Launch Jack Receptacle - Round Contact |  |
|
| Part No. | Leg Length Dim. "A" | |
| 28-5075 Discontinued | 068 (1.73) | |
