SL, SBL, SLS, & SBLS Linear Actuators
Discontinued for reference only
Some stock may still exist, see below

LINEAR ACTUATORS:
SL, SBL, SLS, & SBLS Series
The only Possible Replacement is the 3601 Series. However, the 3601 Series in a Larger Motor with a Faster Pitch Lead Screw. Click Here

LINEAR ACTUATORS, LOW COST SYNCHRONOUS OR STEPPING

Stepping (SLS and SBLS Series) or synchronous (SLand SBL Series) linear actuators are reversible, permanent magnet types. An integral part of the rotor assembly is a sintered bronze nut for extended life. The nut accepts a 1/4" diameter, .048 pitch Acme screw that provides linear motion for pushing, pulling, lifting and positioning applications.

Standard 8" lead screws have maximum travel of 6.75" and a maximum thrust of 15 pounds. Screws of other lengths may be specified. Ball bearings are standard. Synchronous motors provide travel of .24 or.48 inch per second. Stepping motors have a resolution .001 or .002 inch per step (1000 or 500 steps per inch). They may be driven with Hurst Stepping Motor Controllers.

NOTES
1. Standard SLS and SBLS motors have 4-phase, bifilar windings for 6, 12, or 24 VDC operation. Other voltages and 2-phase, bipolar windings are available.
2. Standard SLS and SBLS lead wire configuration is 6 leads. Click here for standard lead wire color code and switching sequence.
3. Capacitors are required for SL and SBL synchronous motors.


SYNCHRONOUS LINEAR ACTUATORS
Model Part
Number
Stock
Item
In/Sec Maximum
Load
(lbs)
Input
Power
(watts)
Normal
Voltage
Capacitor
Value
(mfd)
Full
Load
Temp.
Rise
(oC)
Weight
(with
screw)
(oz)
SL 4013-001   .24 15 6.5 115V.60Hz .62 37 10.5
SBL 4027-002   .48 10 7.0 115V.60Hz .68 37 10.5


STEPPING LINEAR ACTUATORS
Model Part
Number
Stock
Item
Steps/
Inch
Maximum
Load
(lbs)
Input
Power
(watts)
Normal
Voltage
(DC)
Winding
Resistance
(ohms)
Temp.
Rise
(oC)
Weight
(with
screw)
(oz)

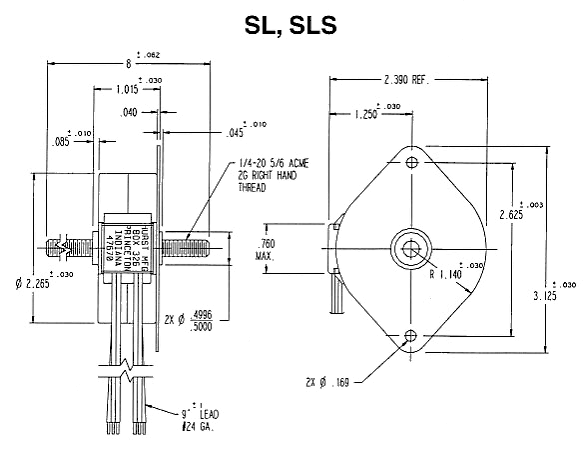

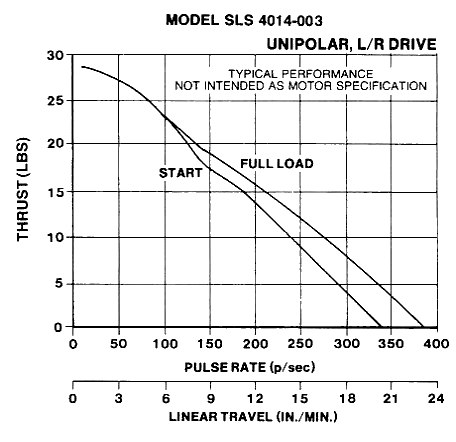

SLS 4014-001 5 pcs 1000 15 11.5 6 6.3 70 10.5
SLS 4014-002   1000 15 11.5 12 25 70 10.5
SLS 4014-003   1000 15 11.5 24 100 70 10.5

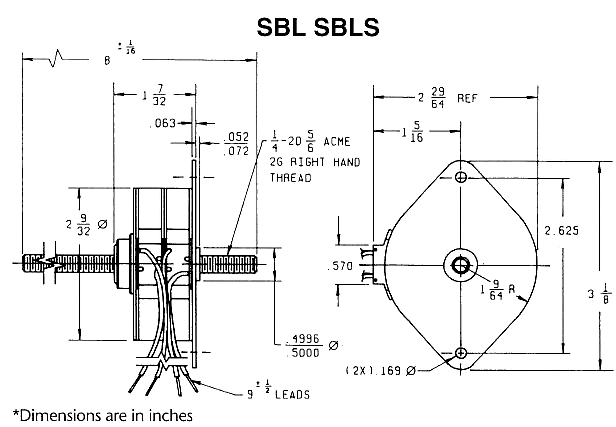

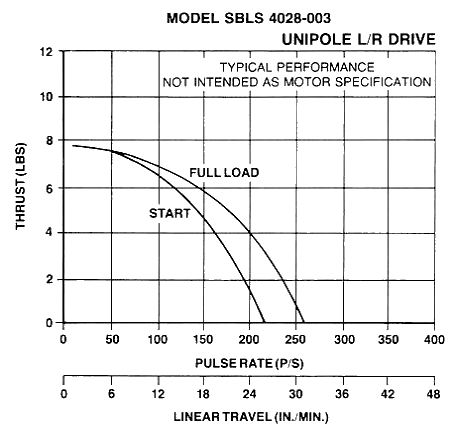

SBLS 4028-002   500 15 8.0 6 9 65 10.5
SBLS 4028-003   500 15 8.0 12 36 65 10.5
SBLS 4028-004   500 15 8.0 24 144 65 10.5
