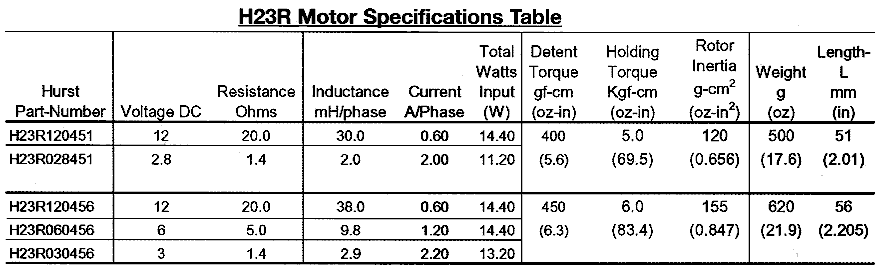

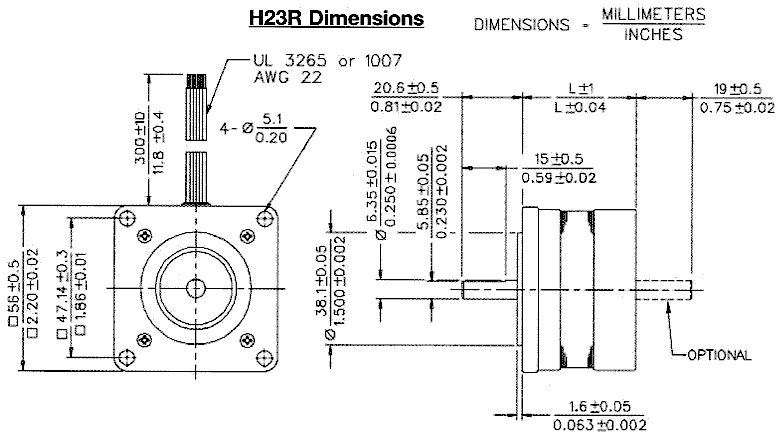

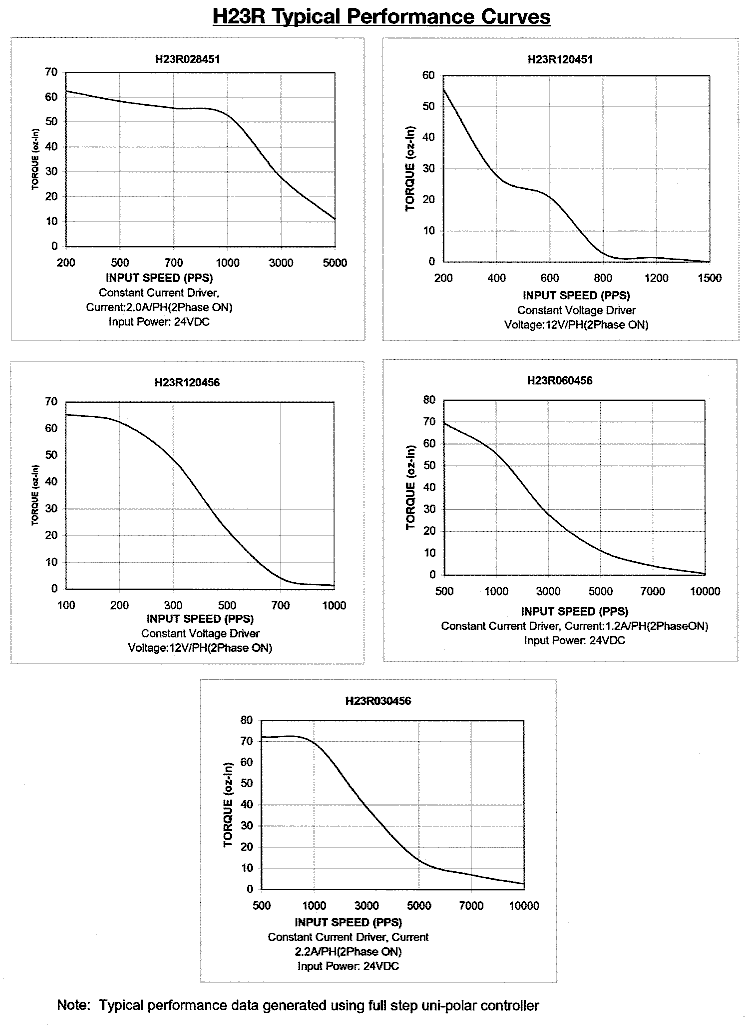

| H 23R Specifications |
| Mounting Flange: | NEMA17 |
| Step angle: | 1.8° |
| Positional Accuracy: | + 5% max. |
| Number of Phases: | 2 or 4 (4 Phase standard) |
| Temperature Rise: | 80 °C max |
| Insulation Resistance: | 100M ohms at 500VDC for 1 minute |
| Dielectric Strength: | 800VAC for 1 minute |
| Insulation Class: | Class B |
| Number of lead wires: | 6 lead uni-polar, bi-polar upon request |
| Lead wire: | UL3265 AWG#22 |
| Operation Ambient Temp: | -l0°C ~ +50°C |
| Radial Play: | 0.03 mm max at 0.5 kg load |
| Axial Play: | 0.08 mm max at 0.7 kg load |
