| Discontinued for reference only |  |

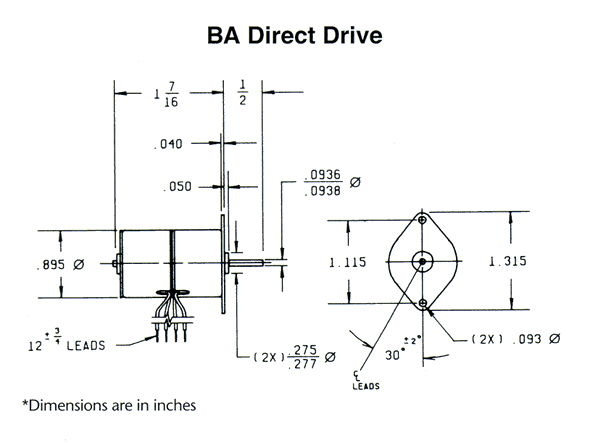

SUPER SMALL SYNCHRONOUS
MOTORS: BA Series |
|---|
This instrument-grade, Supersmall, synchronous motor is reversible and operates at 720 RPM at 115 VAC, 60 Hz. It weighs just 2.1 ounces and is less than an inch in diameter.
Rated torque is 0.625 ounce-inches and normal operation temperature rise is 30oC.
The new BA Series synchronous motor is a practical solution to control problems in equipment where space is at a premium. It also is suited to products employing variable frequency AC controls. A capacitor is required.
| Model | Part Number |
Stock Item |
Speed @ Output Shaft (rpm) |
Rated Torque (oz-inch) |
Input Power (watts) |
Capacitor Value (mfd) |
Full Load Temperature Rise (oC) |
Weight (oz) |
Shaft Bearing |
|---|---|---|---|---|---|---|---|---|---|
| BA | 4201-001 | 720 | 0.625 | 1.5 | 0.15 | 30 | 2.1 | Sleeve |
