| Discontinued for reference only | |
|---|---|
 |

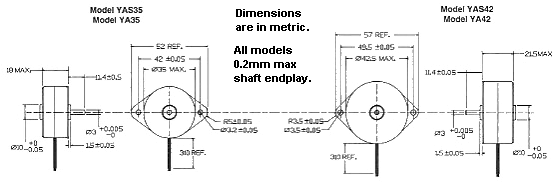

COMPACT STEPPING MOTORS: YAS Series |
| COMPACT DIRECT DRIVE, PERMANENT MAGNET STEPPING MOTORS | |
Y series motors offer excellent solutions to the demands for downsizing while retaining HIGH TORQUE values. Through new process techniques and modern materials produced to closely controlled tolerances, these compact motors have quality and performance characteristics normally associated with larger, more expensive motors.
Specify the Hurst Y Series for economy and space saving features in many applications: Word Processors, Copiers, Medical Instrumentation, Printers, Scientific Instruments, Process Controls.
NOTES

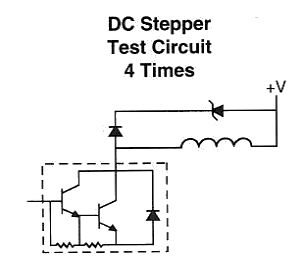

1. Standard YAS motors are supplied with 4-phase, bifilar windings (6 lead wires) and are available for 5, 6, 12, 24 VDC operation. Click here for standard lead wire color code and switching sequence.
2. TS Series motors can be driven with the Hurst Stepping Motor Controllers .
| Model | Part Number |
Stock | Rated Voltage (VDC) |
Rated Resistance (Ohms+10%) |
Rated Inductance (mh+10%) |
Holding Torque (oz-in/ gm-cm) |
Rotor Inertia (oz-in/ gm-cm) |
No Load Pull-In (pps) |
No Load Pull-Out (pps) |
Ambient Temp Range (oC) |
Temp. Rise (oC) |
Weight (oz/gm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

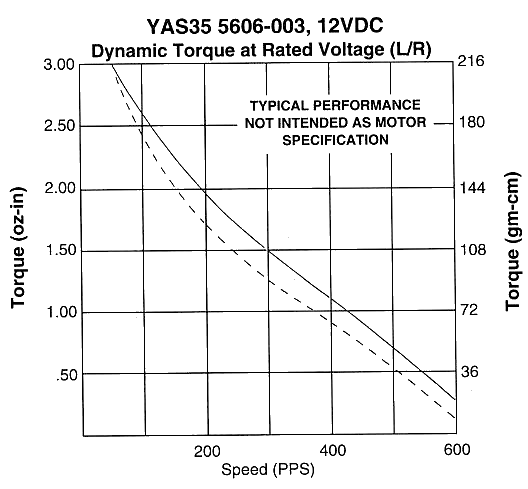

| YAS35 | 5606-001 | 5 | 16 | 8 | 3.6/260 | .011/2.0 | 690 | 780 | -10 to +40 | 60 | 2.7/75 | |
| YAS35 | 5606-002 | 6 | 17.5 | 8.8 | 3.4/245* | .011/2.0 | 690 | 780 | -10 to +40 | 60 | 2.7/75 | |
| YAS35 | 5606-003 | 12 | 70 | 36 | 3.4/245* | .011/2.0 | 690 | 780 | -10 to +40 | 60 | 2.7/75 | |
| YAS35 | 5606-004 | 24 | 280 | 144 | 3.4/245* | .011/2.0 | 690 | 780 | -10 to +40 | 60 | 2.7/75 |
| Model | Part Number |
Stock | Rated Voltage (VDC) |
Rated Resistance (Ohms+10%) |
Rated Inductance (mh+10%) |
Holding Torque (oz-in/ gm-cm) |
Rotor Inertia (oz-in/ gm-cm) |
No Load Pull-In (pps) |
No Load Pull-Out (pps) |
Ambient Temp Range (oC) |
Temp. Rise (oC) |
Weight (oz/gm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

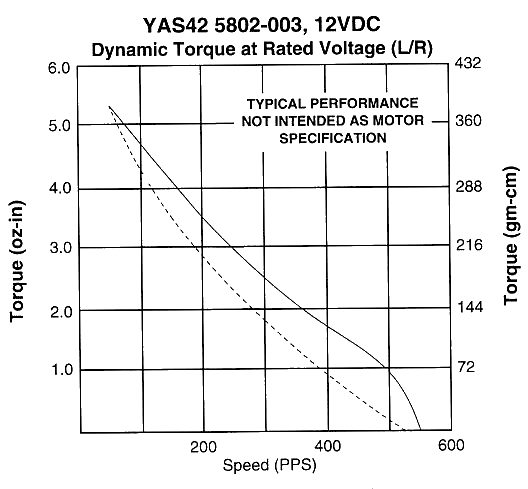

| YAS42 | 5802-001 | 5 | 9 | 5.3 | 5.2/375 | .03/5.45 | 490 | 510 | -10 to +40 | 72 | 5.0/140 | |
| YAS42 | 5802-002 | 6 | 12.5 | 7.4 | 5.4/390* | .03/5.45 | 490 | 510 | -10 to +40 | 75 | 5.0/140 | |
| YAS42 | 5802-003 | 12 | 50 | 29.5 | 5.4/390* | .03/5.45 | 490 | 510 | -10 to +40 | 75 | 5.0/140 | |
| YAS42 | 5802-004 | 24 | 200 | 118 | 5.4/390* | .03/5.45 | 490 | 510 | -10 to +40 | 75 | 5.0/140 |
