SAS & SBS Series Compact Direct Drive or Geared, Permanent Magnet Stepping Motors COMPACT DIRECT DRIVE OR GEARED STEPPING MOTORS:
SAS and SBS Series
COMPACT DIRECT DRIVE OR GEARED, PERMANENT MAGNET STEPPING MOTORS

These stepping motors, both direct drive and geared, are designed for applications where space is limited and precise performance is required. Direct drive motors are available for 6, 12, or 24 VDC operation and provide a choice of 7.5 or 15 step angle. Geared motors have a range of step angles from 0.0125 to 7.5, and output speeds @ 200 p/s from 0.42 to 250.0 rpm.

NOTES
1. Hurst Stepping Motor Controllers may be used to drive SAS and SBS stepping motors.
2. Standard lead wire configuration is 6 leads. Click here for standard lead wire color code and switching sequence.

Direct Drive 7.5o or 15o Step Angle DC Stepping Motors
Model Part
Number
Stock
Item
Step
Angle
(degrees)
Steps
Per
Revolution
2-Phase
Holding
Torque
(oz-in)
Rated
Torque
@ 4-5 p/s
(oz-in)
Input
Power
(watts)
Nominal
Voltage
(volts)
Winding
Resistance
(ohms)
Rotor
Inertia
(oz-in)
Temperature
Rise
(oC)
Weight
(oz)

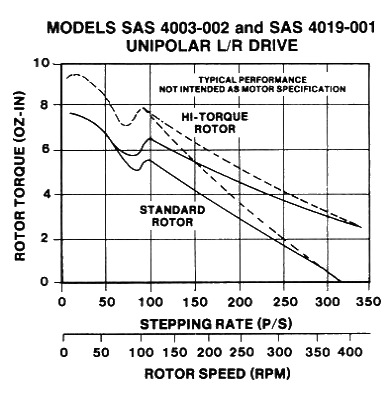

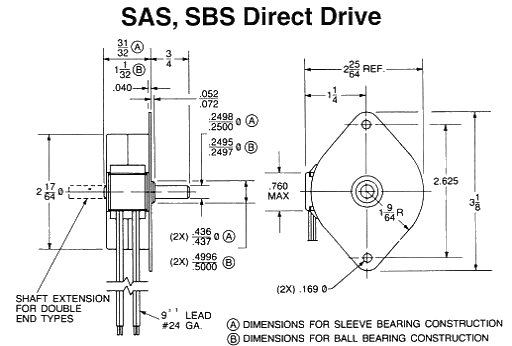

SAS 4003-002   7.5 48 10.5 7.5 8 12 36 0.17 65 8
SAS 4019-001   7.5 48 11.9 9.0 8 12 36 0.17 65 8
SAS 4003-001   7.5 48 10.5 7.5 8 6 9 0.17 65 8
SAS 4003-003   7.5 48 10.5 7.5 8 24 144 0.17 65 8

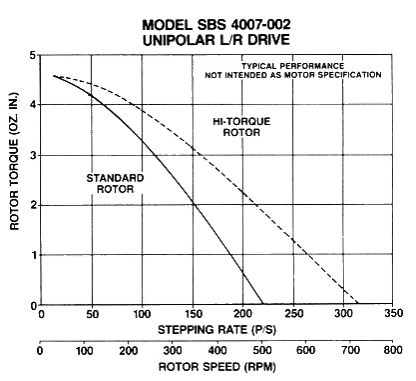

SBS 4007-002   15.0 24 8.0 4.6 8 12 36 0.17 65 8
SBS 4007-001   15.0 24 8.0 4.6 8 6 9 0.17 65 8
SBS 4007-003   15.0 24 8.0 4.6 8 24 144 0.17 65 8
* Measured with no heat sink, motor in a holding mode with 2 phases energized.
Bold face listings indicate Hi-Torque rotor.

Geared Stepping Motors
Model Part
Number
Stock
Item
Reduction Step
Angle
(degrees)
Steps
Per
Revolution
Output
Speed
@ 200 p/s
(rpm)
Typical
Torque
@ 200 p/s
(oz-in)*
Input
Power
(watts)
Winding
Resistance
(ohms)
Weight
(oz)

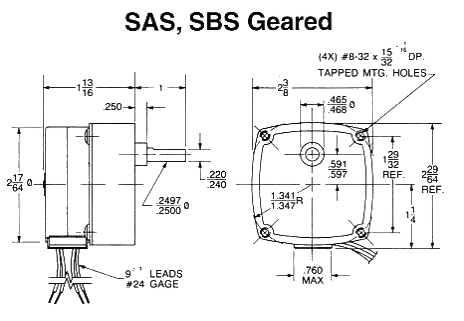

SAS 4004-001   600 0.0125 12 0.42 200* 8 36 16
SAS 4004-002   300 0.0250 12 0.83 200* 8 36 16
SAS 4004-006   75 0.100 12 3.33 200* 8 36 16
SAS 4004-010   30 0.250 12 8.33 97 8 36 16
SAS 4004-012   15 0.500 12 16.67 52 8 36 16
SAS 4004-014   10 0.75 12 25.00 35 8 36 16
SAS 4004-019   2 3.75 12 125.00 7 8 36 16
SBS 4008-001   600 0.025 12 0.83 200* 8 36 16
SBS 4008-002   300 0.050 12 1.67 200* 8 36 16
SBS 4008-006   75 0.200 12 6.67 102 8 36 16
SBS 4008-010   30 0.500 12 16.67 44 8 36 16
SBS 4008-012   15 1.00 12 33.33 23 8 36 16
SBS 4008-014   10 1.50 12 50.00 15 8 36 16
SBS 4008-019   2 7.50 12 250.00 3 8 36 16
*Torque measured at normal voltage with L/R drive.
**Maximum gear train loading.
