STEPPING MOTORS: PAS and PBS Series |
| PERMANENT MAGNET STEPPING MOTORS | |

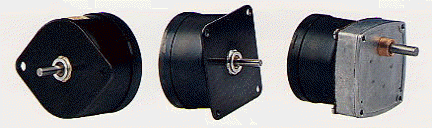

PAS and PBS Series motors provide users with a choice of direct drive or geared models, step angles of 7.5o or 15o, standard or Hi-Torque rotors and, for direct drive models, a choice of mounting plates. Voltages other than those shown as well as 2-phase, bipolar windings may be specified.

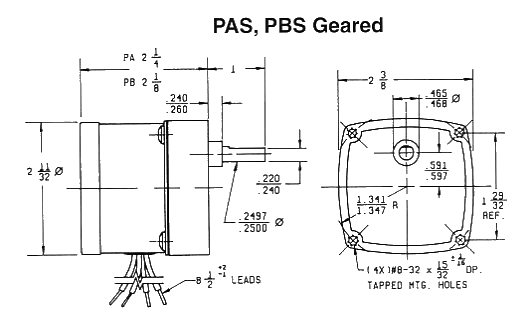

Geared motors provide the same high-quality components and construction as the AS and ABS Series. Gearing is scaled to provide a maximum dynamic gear train loading of 200 ounce-inches.
NOTES
1. Sleeve bearings are standard. Ball bearings may be specified.
2. Standard lead wire configuration is 6 leads. Click here for standard lead wire color code and switching sequence.
3. PAS and PBS motors can be driven with the Hurst Stepping Motor Controllers .

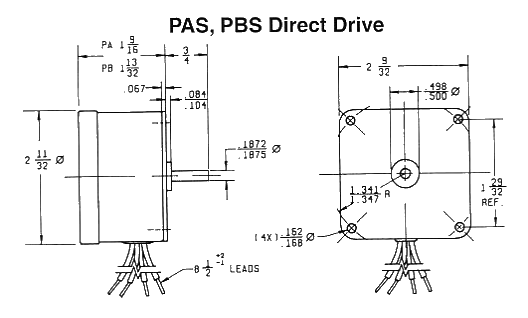

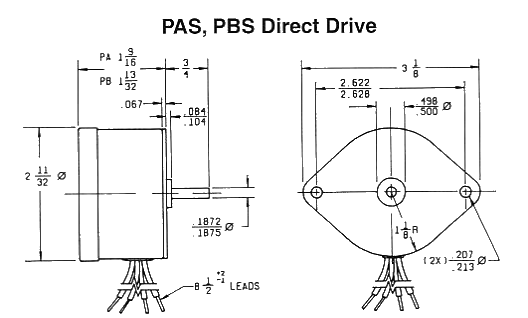

4. The square mounting plate is standard for direct drive motors.
| Model | Part Number |
Stock Item |
Step Angle (degrees) |
Steps Per Revolution |
2-Phase Holding Torque (oz-in) |
Rated Torque @4-5p/s (oz-in) |
Input Power (watts) |
Nominal Voltage (volts) |
Winding Resistance (ohms) |
Rotor Inertial (oz-in) |
Temp. Rise (oC)* |
Weight (oz) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

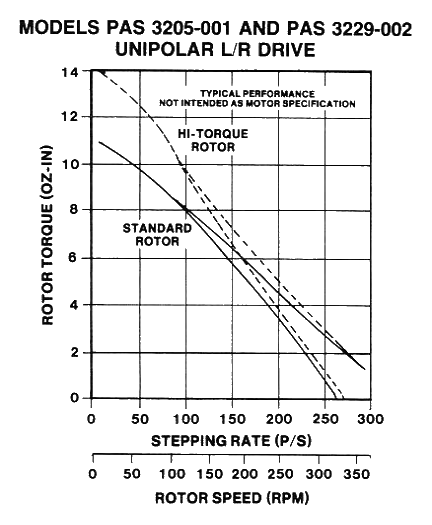

| PAS | 3205-001 | 7.5 | 48 | 14 | 8.5 | 8 | 12 | 35 | 0.34 | 50 | 13 | |
| PAS | 3229-002 | 7.5 | 48 | 16.5 | 11.5 | 8 | 12 | 35 | 0.34 | 50 | 13 | |

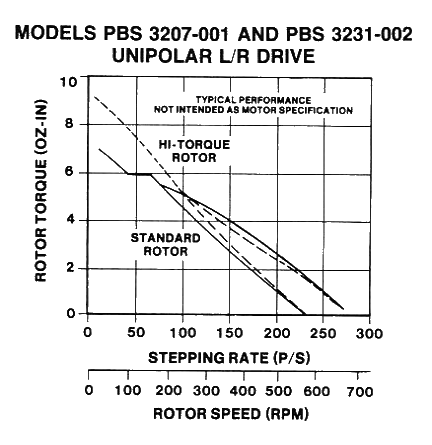

| PBS | 3207-001 | X | 15.0 | 24 | 11 | 5.8 | 8.5 | 12 | 32 | 0.19 | 52 | 13 |
| PBS | 3231-002 | 15.0 | 24 | 12.3 | 7.3 | 8.5 | 12 | 32 | 0.19 | 52 | 13 |
| Model | Part Number |
Stock Item |
Reduction | Step Angle (degrees) |
Steps Per Revolution |
Output Speed @ 200 p/s (rpm) |
Typical Torque @ 200 p/s (oz-in)* |
Input Power (watts) |
Winding Resistance (ohms) |
Weight (oz) |
|---|---|---|---|---|---|---|---|---|---|---|
| PAS | 3206-001 | 300 | 0.025 | 14,400 | .83 | 200* | 8 | 35 | 18 | |
| PBS | 3208-002 | 150 | 0.1 | 3,600 | 3.33 | 200* | 8.5 | 32 | 18 | |
| PBS | 3208-003 | 75 | 0.2 | 1,800 | 6.67 | 136 | 8.5 | 32 | 18 | |
| PAS | 3206-011 | 30 | 0.25 | 1,440 | 8.33 | 105 | 8 | 35 | 18 | |
| PBS | 3208-005 | 50 | 0.3 | 1,200 | 10 | 98 | 8.5 | 32 | 18 | |
| PBS | 3208-004 | 30 | 0.5 | 720 | 16.67 | 58 | 8.5 | 32 | 18 | |
| PBS | 3208-009 | 20 | 0.75 | 480 | 25 | 39 | 8.5 | 32 | 18 | |
| PAS | 3206-041 | 4 1/6 | 1.8 | 200 | 60 | 15 | 8 | 35 | 18 | |
| PAS | 3206-010 | 2 | 3.75 | 96 | 125 | 7.5 | 8 | 35 | 18 |
