Hurst Manufacturing

Discontinued for reference only

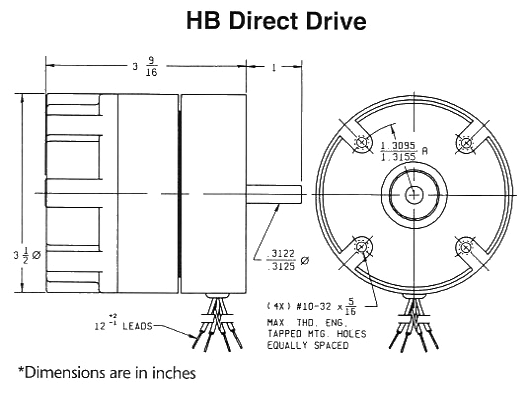

	HB Series SYNCHRONOUS MOTORS:
REVERSIBLE, INVERTED ROTOR, HYSTERESIS SYNCHRONOUS

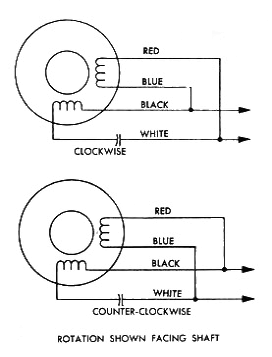

HB Series are availabel in three direct drive synchronous speeds: 1800 RPM (1/35 HP), 1200 RPM (1/70 HP), and 900 RPM (1/115 HP). Inverted rotor design providing superior angular velocity characteristics reduces "flutter" to a minimum. Sealed ball bearings and machined die cast housing are standard. Models listed are designed for 115V, 60 Hz operation. A capacitor is required for operation.

900, 1200 or 1800 RPM Hysteresis Synchronous

Model	Part Number	Speed @ Output Shaft (rpm)	Rated Torque (oz-in)	Input Power (watts)	Capacitor Value (MFD)	Temp. Rise ^oC. Full Load	Weight (oz)
HB	2203-001	900	10.2(C) 10.1(A) 14.1(B)	40	2.5	40	58
HB	2002-001	1200	12.8(C) 12.6(A) 17.6(B)	50	2.0	40	58
HB	2201-001	1800	17.0(C) 16.8(A) 23.5(B)	70	4.0	40	59

(A) Pull-in torque. (B) Locked rotor torque. (C) Pull-out.
