AVLE/AVSE   Vandal proof keypads

Both the AVLE keypad and the less expensive AVSE keypad feature vandal-proof aluminum keys with engraved legends. Shoulders formed on the keys prevent them from being removed by force when the keypad is mounted behind a metal panel. Both keypads find application in public places such as telephone and ATM facilities where abuse and vandalism are common. Twelve- and 16-key AVLE keypads feature gold-plated contacts for reliable low-level switching and have individually-illuminated keys.

  1. Permanently engraved metal keys
  2. AVLE offers illuminated models
  3. AVSE models have 12- and 16-key layouts
  4. Sealed to IP 67 for use in industrial environments
  5. Positive tactile feel, more than 1-miilion operations



AVLE/AVSE Keypads
DescriptionPart Number
Non-IlluminatedIlluminated
AVLE
12-key telephone style AVLE 12150 24
16-key hexidecimal II AVLE 16250 24
AVSE
12-key telephone styleAVSE 12150 20
16-key hexidecimal IIAVSE 16250 20

Specifications
Contacts: AVLE: gold/gold AVSE: stainless steel/gold
 24 V/50 mA nominal, 50V max.
AVLE: 10 mV/1 mA min
AVSE: 5 V/1 mA min
1 W nominal power
AVLE: <200m Ohms initial resistance
AVSE: <10 Ohms initial resistance
Insulation resistance>1,000 M Ohms, 100 VDC
Operating force

AVLE: 5 N,
AVSE: 3.6 N+30%
Travel

AVLE:0.7+0.3 mm
AVSE:0.55+0.1 mm
Operating life>1-million operations
Vibration resistanceAVLE: 2000/10 Hz, 10 cycles, 10 G
Mechanical shock resistanceAVLE: 100 G
E.S.D. Protection5000 V
Operating temperature-25 to +85°C
Storage temperature-40 to +85°C
SealingIP 67
Damp heat (CEI 512-6)21 days
Dry heat (CEI 529)

AVLE: 21 days
AVSE: 10 days
Saline mist (CEI 512-6)AVLE: 48 hours

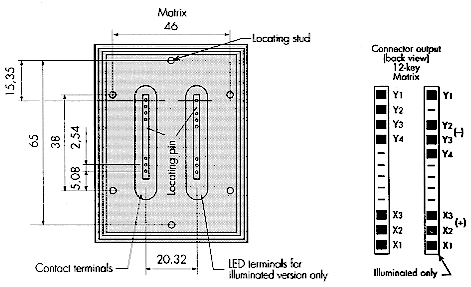

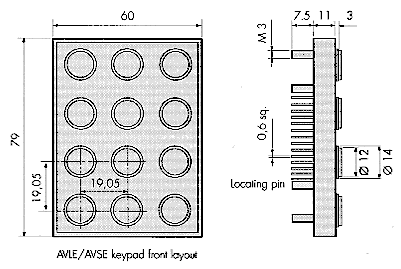

12-key telephone-style keypad

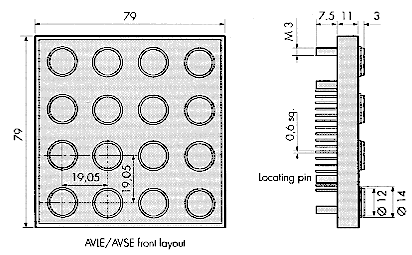

16-key hexidecimal II keypad
