EAO Switch

Series 84
Flush Mount Switch and Indicator with LED Illumination

Features:
42 V AC/DC, 100 mA
Gold plated low-level contacts
Compact units mount on panel or PCB
Sealed to NEMA 4 & 13 (IP 67)
Full lens LED illumination
Bright incandescent illumination available
Award winning Eurostyle design

Award winning Series 84 indicators and pushbuttons provide the quality and flexibility that designers need to improve the performance and appearance of their products. Installation flexibility offers front panel or PCB mounting. Termination flexibility means QC, PCB, or ribbon cable. Appearance flexibility provides modern flush mount design with a choice of natural anodized aluminum or black plastic housing and a wide selection of lenses. This versatility is coupled with a smooth acting, tactile feel switching mechanism that provides years of dependable service in harsh industrial environments.

To order: front panel mounting:
Select pushbutton or indicator housing. Then select switching or indicator unit. Order lens separately.

PCB mounting:
Select pushbutton or indicator housing. Then select switch or indicator PCB base elements. Order lens, mounting flange, and LED separately.

Front Panel Mounting

Indicators
Select housing and indicator unit; order lens separately
Add LED color and voltage digits
Housing IP 67 Sealed IP 40 Sealed
Black Plastic 84-1101.0 84-2101.0
Anodized natural alum. 84-1201.7
Indicator unit multi-chip LED single-chip LED multi-chip LED
QC plug-in/solder term. 84-8002.2320 Red 12 VDC
84-8002.2620 Red 24VDC
84-8002.3320 Orange 12 VDC
84-8002.3620 Orange 24VDC
84-8002.4320 Yellow 12 VDC
84-8002.4620 Yellow 24VDC
84-8002.5320 Green 12 VDC
84-8002.5620 Green 24VDC
84-8101.2620 Red 24VDC
84-8101.3620 Orange 24VDC
84-8101.4620 Yellow 24VDC
84-8101.5620 Green 24VDC
84-8102.2620 Red 24VDC
84-8102.3620 Orange 24VDC
84-8102.4620 Yellow 24VDC
84-8102.5620 Green 24VDC
Flat ribbon cable 84-8002.2340 Red 12 VDC
84-8002.2640 Red 24VDC
84-8002.3340 Orange 12 VDC
84-8002.3640 Orange 24VDC
84-8002.4340 Yellow 12 VDC
84-8002.4640 Yellow 24VDC
84-8002.5340 Green 12 VDC
84-8002.5640 Green 24VDC
84-8101.2640 Red 24VDC
84-8101.3640 Orange 24VDC
84-8101.4640 Yellow 24VDC
84-8101.5640 Green 24VDC
84-8102.2640 Red 24VDC
84-8102.3640 Orange 24VDC
84-8102.4640 Yellow 24VDC
84-8102.5640 Green 24VDC

Order Lamps Separately.

Lighted & Non-Lighted Pushbuttons
Select housing and switching unit; order lens separately
Add LED color and voltage
digits
Housing IP 67 Sealed IP 40 Sealed
Black Plastic 84-1101.0 84-2101.0
Anodized natural alum. 84-1201.7
Switching Unit multi-chip LED Non-Illuminated multi-chip LED single-chip LED Non-Illuminated
QC plug-in/solder terminal 84-8511.2320 Red 12 VDC
84-8511.2620 Red 24VDC
84-8511.3320 Orange 12 VDC
84-8511.3620 Orange 24VDC
84-8511.4320 Yellow 12 VDC
84-8511.4620 Yellow 24VDC
84-8511.5320 Green 12 VDC
84-8511.5620 Green 24VDC
84-8510.0020 84-8612.2620 Red 24VDC
84-8612.3620 Orange 24VDC
84-8612.4620 Yellow 24VDC
84-8612.5620 Green 24VDC
84-8611.2620 Red 24VDC
84-8611.3620 Orange 24VDC
84-8611.4620 Yellow 24VDC
84-8611.5620 Green 24VDC
84-8610.0020
Flat ribbon cable 84-8511.2340 Red 12 VDC
84-8511.2640 Red 24VDC
84-8511.3340 Orange 12 VDC
84-8511.3640 Orange 24VDC
84-8511.4340 Yellow 12 VDC
84-8511.4640 Yellow 24VDC
84-8511.5340 Green 12 VDC
84-8511.5640 Green 24VDC
84-8510.0040 84-8612.2640 Red 24VDC
84-8612.3640 Orange 24VDC
84-8612.4640 Yellow 24VDC
84-8612.5640 Green 24VDC
84-8611.2640 Red 24VDC
84-8611.3640 Orange 24VDC
84-8611.4640 Yellow 24VDC
84-8611.5640 Green 24VDC
84-8610.0040
1st digit is color: 2=Red, 3=Orange, 4=Yellow, 5=Green;
2nd digit is LED supply voltage for IP 67 sealed units: 3=12 VDC, 6=24VDC. IP 40 LEDs are 24 VDC only.

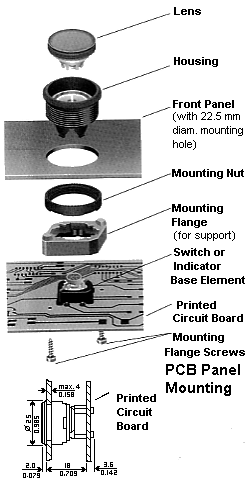

Printed Circuit Board Mounting

Indicators & Pushbutton Elements
Select indicator or pushbutton housing and appropriate PCB base elements then order lens, mounting flange, and LED separately
Housing Indicator Pushbutton
Black Plastic 84-1101.0
Anodized natural aluminum 84-1201.7
PCB Elements
Indicator base element 92-800.042
Switch base element   92-851.342

Lenses for all housings
Add color digit
  Part Number 0 2 3 4 5 6 7 8
Plastic lens 84-7111.200 Red
84-7111.300 Orange
84-7111.400 Yellow
84-7111.500 Green
84-7111.600 Blue
84-7111.700 Clear
  X X X X X X
Plastic lens (opaque) 84-7121.000 Opaque Black
84-7121.800 Opaque Gray
X             X
Aluminum lens (opaque) 84-7201.000 Opaque Black
84-7201.200 Red
84-7201.400 Yellow
84-7201.500 Green
84-7201.600 Blue
84-7201.800 Opaque Gray
X X   X X X   X
Aluminum lens with window 84-7211.800 Opaque Gray               X

0=Black, 2=Red, 3=Orange, 4=Yellow, 5=Green, 6=Blue, 7=Clear, 8=Gray.
Black and gray are opaque.
