EAO Switch

Series 61
Subminiature Modular Oil & Watertight Switches and Indicators

Features:
250 VAC/6 A (screw term.), 220 VDC/0.5 A, 24 VDC/6 A
Minimum depth: 1.54"
Sealed switches meet IP 65 and NEMA 4 and 13 specifications
Detachable contact blocks, up to 3 poles
Actuator can not be changed from momentary to maintained
Drain holes in bezel
Recessed mounting adapter available

To order:
First select pushbutton or rotary actuator desired. Then order contact block, lens or lens cap, and illumination separately. Indicate contact and terminal type where applicable.

Order Lamps Separately.

Series 61
Lighted Pushbutton Actuators & Indicators
(order contact block, lamp, and lens separately)
Description
Actuator
Rect. Square Round
24 x 24 mm 18 x 18 mm 24 mm* 18 mm
Momentary action 61-113.00 61-115.00 61-112.00 61-114.00 61-111.00
Maintained action 61-123.00 61-125.00 61-122.00 61-124.00 61-121.00
Convertible action* 61-133.00 61-135.00 61-132.00   61-131.00

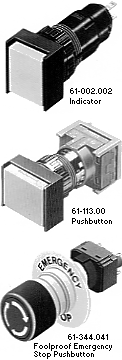

Indicator, complete 61-003.00 61-005.00 61-002.00 61-004.00 61-001.00

Terminal, Indicator only: 0.110" Q.C. plug-in or solder
* Order front ring separately.

* Convertible Actuator
There is a choice of three pushbutton actuators: momentary, maintained, and convertible. Convertible actuators may be changed from momentary to maintained action, as shown below.
Once converted, they can not be changed back.

To convert: Push the metallic part shown with a small screwdriver until it reaches the end of its travel.

Enclosure for Emergency Stop Pushbutton
The bright yellow enclosure is sealed to NEMA 4 &: 13 and IP 65. It is particularly useful for surface mounting Series 61 emergency stop pushbuttons. Enclosure dimensions are: 65 x 65 x 57 mm (2.56 x 2.56 x 2.25 inches). A cable feed-thru seal is available.

Description Part Number
Surface-mount enclosure 61-948.04
Cable feed-thru seal for enclosure 61-948.18

Emergency Stop Actuators

Foolproof -- meet new EN 418 directive
Emergency stop switches are operated by simply pushing on the front cap to immediately break the circuit. They then may be released to reactivate the circuit by turning the front cap clockwise by hand. EAO emergency stop switches meet the new EN 418 directive for "foolproof" operation. They prevent teasing the actuator which could result in premature or unreliable operation and eliminate blocking the actuator operation with foreign objects.

Emergency Stop Actuators
(Order slow-make contact block and marking plate separately)
Description Marking on Knob Part Number
Twist to release 61-344.041
Twist to release 61-344.042

Emergency Stop Pushbutton Marking Plate
Yellow circular plate, 43 mm (1.69") diameter.
Description Plate Part Number
Blank 61-997.00
Marked "Emergency Stop" 61-997.02

Contact Blocks for Emergency Stop Pushbutton
Description Contacts Part Number
1PST, N.C.
Slow-make
61-874.511
61-874.517
61-874.531
61-874.537
2PST, 2 N.C.
Slow-make
61-875.511
61-875.517
61-875.531
61-875.537
2PST, 1 N.O./1 N.C.
Slow-make
61-877.511
61-877.517
61-877.531
61-877.537

Select contact and terminal type
Contact material (2nd digit): 1 = Silver, 3 = Gold
Terminal type (3rd digit): 1 = Screw (silver contact only), 7 = 0.110 Q.C. or solder

Series 61 Flush Mounting Pushbuttons & Indicators

New universal actuators and flush mounting adapters simplify assembling and ordering flush panel mounted pushbuttons and indicators.

Simply select the universal actuator from among the three pushbutton types: momentary, maintained, and convertible (convertible can be changed from momentary to maintained). Or choose a complete indicator or an indicator sleeve (requires addition of an indicator or flasher element).

Then combine the selected actuator with one of the flush mount adapters depending on front appearance (square, rectangular, or round; material; and color).
Finish off the assembly by selecting a flush mount lens from the next page, a lamp (if required), and a contact block.


Universal momentary
pushbutton actuator
plus 61-9931.0
rectangular adapter

Universal momentary
pushbutton actuator
plus 61-9930.0
square adapter

Universal momentary
pushbutton actuator
plus 61-9933.0
round adapter

Universal indicator
actuator plus
61-9930.0 square
adapter and
61-800.005 flasher
element
Order Lamps Separately.

Series 61 Pushbuttons & Indicator
Actuators for Flush Mounting
Description
Actuator
Rectangular
24 x 30 mm
Square
24 x 24 mm
Round
25 mm diam.
New Universal
Actuator
Former P/N Former P/N Former P/N Part Number
Momentary pushbutton 61-118.00 61-117.00 61-119.00* 61-1100.0
Maintained pushbutton 61-128.00 61-127.00 61-129.00* 61-1200.0
Convertible pushbutton 61-138.00 61-137.00   61-1300.0
Indicator, complete Discontinued
for reference only
61-008.002
Discontinued
for reference only
61-007.002
Discontinued
for reference only
61-009.002*
61-0000.02
Indicator sleeve 61-008.90** 61-007.90** 61-009.90 61-0009.0**
*Supplied complete with integral flush mount adapter.
**Order indicator lamp element or flasher element below.

Square, Rectangular, and Round
Flush Mounting Adapters

(Use with all Universal Actuators)
Description Material Color Former P/N Part Number
24 x 30 mm Rect. Plastic Black 61-993.10 61-9931.0
Plastic Aluminum-plated 61-993.14 61-9931.4
24 x 24 mm Square Plastic Black 61-993.00 61-9930.0
Plastic Aluminum-plated 61-993.04 61-9930.4
25mm diam. Round Aluminum Natural anodized   61-9933.0
Aluminum Black anodized   61-9933.1
Plastic Black   61-9933.10

Indicator Lamp and Flasher Elements
for Flush Mounting Indicator Sleeve
Description Terminals Part Number
Indicator lamp element Screw 61-800.601
Flasher element Solder 61-800.005
Protective covers for Flush Mounting
Description Part Number
Rectangular 61-9922.0
Square 61-9921.0

Series 61 Lenses - Matte Finish
Add color digit
Description For Rect.
Bezel


18 x 24 mm
For Square Bezel For Round Bezel Rectangular Flush Mount
24 x 30 mm
Square Flush Mount
24 x 24 mm
Round Flush
Mount 25 mm
Color
24 x 24 mm 18 x 18 mm 24 mm 18 mm Former P/N Part No. Former P/N Part No. Part No. 0 1 2 3 4 5 6 7 8 9
Flat Lens
Translucent 61-9231.0 Opaque Black
61-9231.2 Red
61-9231.3 Orange
61-9231.4 Yellow
61-9231.5 Green
61-9231.6 Blue
61-9231.8 Opaque Gray
61-9231.9 White
61-9251.0 Opaque Black
61-9251.2 Red
61-9251.3 Orange
61-9251.4 Yellow
61-9251.5 Green
61-9251.6 Blue
61-9251.8 Opaque Gray
61-9251.9 White
61-9221.0 Opaque Black
61-9221.2 Red
61-9221.3 Orange
61-9221.4 Yellow
61-9221.5 Green
61-9221.6 Blue
61-9221.8 Opaque Gray
61-9221.9 White
  61-9211.0 Opaque Black
61-9211.2 Red
61-9211.3 Orange
61-9211.4 Yellow
61-9211.5 Green
61-9211.6 Blue
61-9211.8 Opaque Gray
61-9211.9 White
61-9281.0 Opaque Black
61-9281.2 Red
61-9281.3 Orange
61-9281.4 Yellow
61-9281.5 Green
61-9281.6 Blue
61-9281.8 Opaque Gray
61-9281.9 White
  61-9271.0 Opaque Black
61-9271.2 Red
61-9271.3 Orange
61-9271.4 Yellow
61-9271.5 Green
61-9271.6 Blue
61-9271.8 Opaque Gray
61-9271.9 White
?   X   X X X X X   X X
            61-9781.0 Opaque Black
61-9781.8 Opaque Gray
61-9781.9 White
  61-9771.0 Opaque Black
61-9771.8 Opaque Gray
61-9771.9 White
  X               X X
Transparent 61-933.11 Solar Black
61-933.12 Red
61-933.13 Orange
61-933.14 Yellow
61-933.15 Green
61-933.16 Blue
61-933.17 Clear
61-935.11 Solar Black
61-935.12 Red
61-935.13 Orange
61-935.14 Yellow
61-935.15 Green
61-935.16 Blue
61-935.17 Clear
61-932.11 Solar Black
61-932.12 Red
61-932.13 Orange
61-932.14 Yellow
61-932.15 Green
61-932.16 Blue
61-932.17 Clear
61-964.21 Solar Black
61-964.22 Red
61-964.23 Orange
61-964.24 Yellow
61-964.25 Green
61-964.26 Blue
61-964.27 Clear
61-9311.1 Solar Black
61-9311.2 Red
61-9311.3 Orange
61-9311.4 Yellow
61-9311.5 Green
61-9311.6 Blue
61-9311.7 Clear
61-9381.1 Solar Black
61-9381.2 Red
61-9381.3 Orange
61-9381.4 Yellow
61-9381.5 Green
61-9381.6 Blue
61-9381.7 Clear
61-9681.1 Solar Black
61-9681.2 Red
61-9681.3 Orange
61-9681.4 Yellow
61-9681.5 Green
61-9681.6 Blue
61-9681.7 Clear
61-9371.1 Solar Black
61-9371.2 Red
61-9371.3 Orange
61-9371.4 Yellow
61-9371.5 Green
61-9371.6 Blue
61-9371.7 Clear
61-9671.1 Solar Black
61-9671.2 Red
61-9671.3 Orange
61-9671.4 Yellow
61-9671.5 Green
61-9671.6 Blue
61-9671.7 Clear
61-9642.1 Solar Black
61-9642.2 Red
61-9642.3 Orange
61-9642.4 Yellow
61-9642.5 Green
61-9642.6 Blue
61-9642.7 Clear
  X X X X X X X
Concave
Translucent 61-923.60 Opaque Black
61-923.62 Red
61-923.63 Orange
61-923.64 Yellow
61-923.65 Green
61-923.66 Blue
61-923.68 Opaque Gray
61-923.69 White
  61-922.60 Opaque Black
61-922.62 Red
61-922.63 Orange
61-922.64 Yellow
61-922.65 Green
61-922.66 Blue
61-922.68 Opaque Gray
61-922.69 White
              X   X X X X X   X X
Transparent 61-933.62 Red
61-933.63 Orange
61-933.64 Yellow
61-933.65 Green
61-933.66 Blue
61-933.67 Clear
  61-932.62 Red
61-932.63 Orange
61-932.64 Yellow
61-932.65 Green
61-932.66 Blue
61-932.67 Clear
                  X X X X X X
Lens
(Anodized Al)
      61-984.10 Opaque Black
61-984.12 Red
61-984.14 Yellow
61-984.15 Green
61-984.16 Blue
61-984.18 Opaque Gray
          61-9841.0 Opaque Black
61-9841.2 Red
61-9841.4 Yellow
61-9841.5 Green
61-9841.6 Blue
61-9841.8 Opaque Gray
X   X   X X X   X*
Film for Legends       61-970.77
Mushroom Cap**       61-959.30 Opaque Black
61-959.32 Red
61-959.34 Yellow
61-959.35 Green
            X   X   X X
Front Ring
(Anodized Al)
      61-960.01 natural anodized aluminum (24 mm round bezel only)
61-960.00 black anodized aluminum (24 mm round bezel only)

0=Black, 1=Smoked, 2=Red, 3=Orange, 4=Yellow, 5=Green, 6=Blue, 7=Clear, 8=Gray, 9=White. Black, Gray, and anodized aluminum lenses are opaque.
* Natural anodized aluminum.
**32 mm diameter, all mushroom caps are opaque.
NOTE: 24 mm round style always requires a front ring. Film for legends (61-970.77): use 61-964.2 lens.

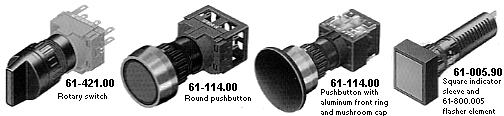

Series 61 Lighted
Two- and Three- Position Rotary Actuators

(Order lens cap, lamp, and contact block separately)
Description Positions Part Number
2-position
Momentary
61-411.00
2-position
Maintained
61-421.00
3-position
Momentary
at C & B
61-451.00*
3-position
Maintained
at C & B
61-461.00*
3-position
C Maintained
B Momentary
61-471.00*
3-position
C Momentary
B Maintained
61-481.00*

* Position B operates terminals 21-22 or 23-24. Position C, terminals 11-12 or 12-14.

Rotary Lens Cap
Add color digit
Lens Cap with Transparent
Colored Window & Indicating Dot
Part Number
Black Lens Cap Gray Lens Cap
For standard mounting rotary 52-928.00 Opaque Black
52-928.20 Red
52-928.30 Orange
52-928.40 Yellow
52-928.50 Green
52-928.60 Blue
52-928.80 Opaque Gray
52-928.90 White
52-929.00 Opaque Black
52-929.20 Red
52-929.30 Orange
52-929.40 Yellow
52-929.50 Green
52-929.60 Blue
52-929.80 Opaque Gray
52-929.90 White
For flush mounting rotary 61-9028.00 Opaque Black
61-9028.20 Red
61-9028.30 Orange
61-9028.40 Yellow
61-9028.50 Green
61-9028.60 Blue
61-9028.80 Opaque Gray
61-9028.90 White
61-9029.00 Opaque Black
61-9029.20 Red
61-9029.30 Orange
61-9029.40 Yellow
61-9029.50 Green
61-9029.60 Blue
61-9029.80 Opaque Gray
61-9029.90 White

Select color of transparent window: 0=Black, 2=Red, 3=Orange, 4=Yellow, 5=Green, 6=Blue, 8=Gray, 9=White. Black, Gray, and White are opaque.
Black cap not available with Gray window. Gray cap not available with Black window.
Do not use zero ("0") at end of part number for Black, Gray, or White.


Series 61 Indicator & Flasher
separate element block
(Order lens, lamp, and lamp element or flasher element separately)
Description Rect. Square Round
24 x 24 mm 18 x 18 mm 24 mm 18 mm
Indicator Sleeve 61-003.90 61-005.90 61-002.90 61-004.90 61-001.90
Element Blocks
Description Terminals Part Number
Indicator element Screw 61-800.601
Flasher element Solder 61-800.005

Square Bezel Insert
Changes round bezel to 24 x 24 mm square bezel: 52-950.0

Changes round bezel to 26 x 26 mm square bezel: 52-952.0

Contact Blocks for Pushbuttons
and 2-Position Rotary Switches
Snap-Action
Select contact type
Description Contacts Part Number
1PST, N.O. 61-841.012
61-841.022
2PST, N.O. 61-842.012
61-842.022
3PST, N.O. 61-843.012
61-843.022
1PST, 1 N.C. 61-844.012
61-844.022
2PST, 2 N.C. 61-845.012
61-845.022
3PST,3 N.C. 61-846.012
61-846.022
2PST,N.O./N.C. 61-847.012
61-847.022
3PST,N.O./2 N.C. 61-848.012
61-848.022
3PST,2 N.O./N.C. 61-849.012
61-849.022
Select contact
Contact material (2nd digit): 1=Silver, 2=Gold over silver
Terminal: 0.110" Q.C., plug-in or solder
NOTE: Any switch block with other than solder terminals requires Dismantling Tool 61-971.10 for removal from actuator.
Slow-Make
Select Contact and Terminal Type
Description Contacts Part Number
1PST, N.O. 61-861.011
61-861.017
61-861.031
61-861.037
1PST, N.O. 61-861.511
2PST, N.O. 61-862.017
61-862.037
2 PST, N.O. 61-862.511
1PST, 1 N.C. 61-864.011
61-864.017
61-864.031
61-864.037
1PST, 1 N.C. 61-864.511
2PST, 2 N.C. 61-865.017
61-865.037
2PST, 2 N.C. 61-865.511
2PST, 2 N.O./N.C. 61-867.017
61-867.037
2PST, N.O./N.C. 61-867.511
Select contact and terminal type where applicable
Contact material (2nd digit): 1=Silver, 3 =Gold* (slow make only)
Terminal type (3rd digit): 1=Screw (silver contacts only), 7=0.110"
Q.C. or solder
*Low level to 42 V AC/100 mA.
Contact Blocks for 3-Position
Rotary Switches

(Select Contact and Terminal Type where applicable)
Description Contacts Part Number
2PST, 2 N.O. Snap Action 61-852.011
61-852.017
61-852.031
61-852.037
2PST, 2 N.O. Slow Make 61-872.017
61-872.037
2PST, 2 N.O. Slow Make 61-872.511
2PST, 2 N.C. Snap Action 61-855.011
61-855.017
61-855.031
61-855.037
2PST, 2 N.C. Slow Make 61-875.017
61-875.037
2PST, 2 N.C. Slow Make 61-875.511
2PST, N.C./N.O. Snap Action 61-857.011
61-857.017
61-857.031
61-857.037
2PST, N.O./N.C. Snap Action 61-857.411
61-857.417
61-857.431
61-857.437
2PST, N.O./N.C. Slow Make 67-877.011
67-877.017
67-877.031
67-877.037
2PST, N.O./N.C. Slow Make 61-877.511
Select contact and terminal type where applicable
Contact material (2nd digit): 1=Silver, 2=Gold over silver (snap-action only), 3=Gold (slow -make only).
Terminal type (3rd digit): 1=Screw (slow-make and silver contacts only), 2=0.110" Q.C. plug-in or solder (snap action only), 7=0.110" Q.C. or solder (slow-make only)


To prevent pushbutton or rotary switch rotation, punching tool (Part no. 51-999) porduces an anti-rotation projection in the mounting hole. Anit-rotation locking washer (Part no 51-910) also is available.
