EAO Switch

Series 01
Multi-purpose 16 mm pushbuttons

Features:
Snap Action: 250 VAC/5A, 220VDC/0.1A, 24VDC/2A
Low Level: 42VAC/0.1A, 42VDC/0.1A

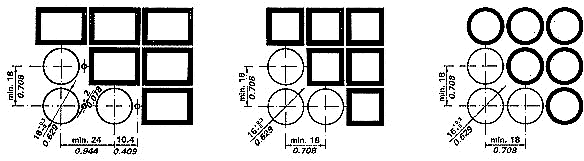

Min. Panel depth = 1.34 in.
Front Panel Replaceable Lense and Lamp
Incadescent lamp, neon, or LED
Combined Momentary/Maintained action available



To order: First select switch indicator desired, indication contact and terminal type, where applicable. Then order lens and illuminator separately.

Order Lamps Separately.

Momentary
  Switch element Rectangular Square Round
Snap
Action
1-pole Form Z 01-121.012
01-121.015
01-121.022
01-121.025
01-151.012
01-151.015
01-151.022
01-151.025
01-131.012
01-131.015
01-131.022
01-131.025
2-pole Form Z 01-122.015
01-122.025
01-152.015
01-152.025
01-132.015
01-132.025
3-pole Form Z 01-123.015
01-123.025
01-153.015
01-153.025
01-133.015
01-133.025
4-pole Form Z 01-124.015
01-124.025
01-154.015
01-154.025
01-134.015
01-134.025

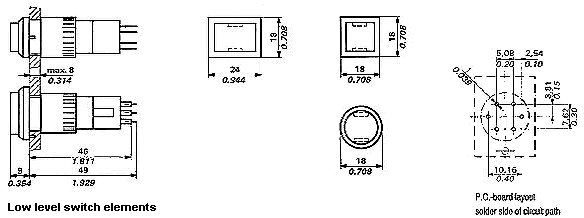

Low
Level
2 N.O. contacts 01-421.036 01-451.036 01-431.036
2 N.C. contacts 01-422.036 01-452.036 01-432.036
1 N.O., 1 N.C. 01-423.036 01-453.036 01-433.036
1 N.O. contact 01-425.036 01-455.036 01-435.036
1 N.C. contact 01-426.036 01-456.036 01-436.036
Maintained
Snap
Action
1-pole Form Z 01-261.012
01-261.015
01-261.022
01-261.025
01-281.012
01-281.015
01-281.022
01-281.025
01-271.012
01-271.015
01-271.022
01-271.025
2-pole Form Z 01-262.015
01-262.025
01-282.015
01-282.025
01-272.015
01-272.025
3-pole Form Z 01-263.015
01-263.025
01-283.015
01-283.025
01-273.015
01-273.025
4-pole Form Z 01-264.015
01-264.025
01-284.015
01-284.025
01-244.015
01-244.025
Low
Level
2 N.O. contacts 01-461.036 01-481.036 01-471.036
2 N.C. contacts 01-462.036 01-482.036 01-472.036
1 N.O., 1 N.C. 01-463.036 01-483.036 01-473.036
1 N.O. contact 01-465.036 01-485.036 01-475.036
1 N.C. contact 01-466.036 01-486.036 01-476.036
Combined Momentary/Maintained
Snap
Action,
Form Z
Momenatry 1PDT and
Maintained 1PDT
01-101.015
01-101.025
01-104.015
01-104.025
01-107.015
01-107.025
Momenatry 1PDT and
Maintained 2PDT
01-102.015
01-102.025
01-105.015
01-105.025
01-108.015
01-108.025
Momenatry 2PDT and
Maintained 1PDT
01-103.015
01-103.025
01-106.015
01-106.025
01-109.015
01-109.025
Lighted Indicator
(order lens
and lamp
separately)
For 0.110" Q.C. terminals 01-040.002 01-050.002 01-030.002
Solder terminals 01-040.005 01-050.005 01-030.005
Length matches low level,
universal terminals
01-041.006 01-051.006 01-031.006
Ordering Notes: .0 Select contact and terminal type, where applicable
1st digit is always 0 (Case color is black)
Contact material (2nd digit): 1=Silver, 2=Gold over Silver
Terminal type (3rd digit): 2=0.11=" Q.C., 5=Solder

Lenses/ Mushroom Caps
  Description Rect. Square Round 0 1 2 3 4 5 6 7 8 9
Flat Lens Translucent 01-901.0 Black
01-901.2 Red
01-901.3 Orange
01-901.4 Yellow
01-901.5 Green
01-901.6 Blue
01-901.8 Gray
01-901.9 White
01-951.0 Black
01-951.2 Red
01-951.3 Orange
01-951.4 Yellow
01-951.5 Green
01-951.6 Blue
01-951.8 Gray
01-951.9 White
01-931.0 Black
01-931.2 Red
01-931.3 Orange
01-931.4 Yellow
01-931.5 Green
01-931.6 Blue
01-931.8 Gray
01-931.9 White
X   X X X X X   X X
Transparent 01-982.2 Red
01-982.3 Orange
01-982.4 Yellow
01-982.5 Green
01-982.6 Blue
01-982.7 Clear
01-985.2 Red
01-985.3 Orange
01-985.4 Yellow
01-985.5 Green
01-985.6 Blue
01-985.7 Clear
01-983.2 Red
01-983.3 Orange
01-983.4 Yellow
01-983.5 Green
01-983.6 Blue
01-983.7 Clear
    X X X X X X
Transparent with
clear diffuser
01-972.2 Red
01-972.4 Yellow
01-972.5 Green
01-972.7 Clear
01-975.2 Red
01-975.4 Yellow
01-975.5 Green
01-975.7 Clear
01-973.2 Red
01-973.4 Yellow
01-973.5 Green
01-973.7 Clear
    X   X X   X
Mushroom Cap Opaque 01-930.2 Red
01-930.4 Yellow
01-930.5 Green
01-952.2 Red
01-952.4 Yellow
01-952.5 Green
01-932.2 Red
01-932.4 Yellow
01-932.5 Green
    X   X X

 Select Color: 0=Black, 1=Solar Black, 2=Red, 3=Orange, 4=Yellow, 5=Green, 6=Blue, 7=Clear, 8=Gray, 9=White. Black and Grey are Opaque.
