FEATURES: Surface mount collet sockets are available in single and dual row. "Break" feature allows strips to be cut to the number of positions desired. Compatible with automatic insertion equipment. Side-to-side and end-to-end stackable. SPECIFICATIONS: Body material is black UL 94V-0 Glass-filled 4/6 Nylon. Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85. Pin body plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u. [2.54 um] min. Nickel per QQ-N-290. 4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92. Contact plating is 10 u [.25 um] Gold per MIL-G-45204 over 50 u min. [1.27 um] Nickel per QQ-N-290. Contact current rating=3 Amps. Operating temperature=221°F [105°C]. Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead. Accepts leads .015-.025 [.38-.64] in diameter, .100-.125 [2.54-3.18] long. MOUNTING CONSIDERATIONS: Suggested PCB hole size=.063 [1.60] dia. "A"= No. of Pins per Row X .100 [2.54] "B"= (No. of Pins per Row - 1) X .100 [2.54]	Series X518 Surface Mount Single and Dual Row Collet Sockets

FEATURES:

Surface mount collet sockets are available in single and dual row.

"Break" feature allows strips to be cut to the number of positions desired.

Compatible with automatic insertion equipment.

Side-to-side and end-to-end stackable.
SPECIFICATIONS:

Body material is black UL 94V-0 Glass-filled 4/6 Nylon.

Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.

Pin body plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u. [2.54 um] min. Nickel per QQ-N-290.

4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.

Contact plating is 10 u [.25 um] Gold per MIL-G-45204 over 50 u min. [1.27 um] Nickel per QQ-N-290.

Contact current rating=3 Amps.

Operating temperature=221°F [105°C].

Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead.

Accepts leads .015-.025 [.38-.64] in diameter, .100-.125 [2.54-3.18] long.

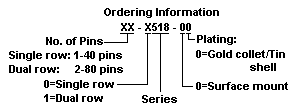

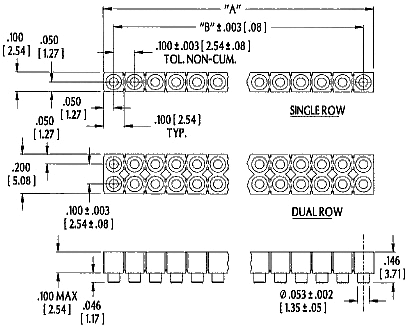

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.063 [1.60] dia.

"A"= No. of Pins per Row X .100 [2.54]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series X518
Surface Mount
Single and Dual
Row Collet Sockets
