FEATURES: Aries collet sockets are available in single or dual rows. Cuttable to the number of pins desired to fit the application. Side-to-side and end-to-end stackable. SPECIFICATIONS: Body material is black UL 94V-0 Nylon 4/6. Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85. Pin body plating is either 10 u [.25 um] min. Gold per MIL-G-45204 or 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-1728 over 100 u [2.54 um] min. Nickel per QQ-N-290. 4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92. Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290. Contact current rating=3 Amps. Operating temperature: 221°F [105°C] Tin plating, 257°F [125°C] Gold plating. Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead. Accepts leads .015-.025 [.38-.64] in diameter, .110-.160 [2.79-4.06] long. MOUNTING CONSIDERATIONS: Suggested PCB hole size=.045 + .002 [1.14 + .05] dia. "A"= No. of Pins per Row X .100 [2.54] "B"= (No. of Pins per Row - 1) X .100 [2.54]	Series X508 Single and Dual Row Collet Sockets with Wire Wrap Pins

FEATURES:

Aries collet sockets are available in single or dual rows.

Cuttable to the number of pins desired to fit the application.

Side-to-side and end-to-end stackable.

SPECIFICATIONS:
Body material is black UL 94V-0 Nylon 4/6.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is either 10 u [.25 um] min. Gold per MIL-G-45204 or 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-1728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature:
221°F [105°C] Tin plating,
257°F [125°C] Gold plating.
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .110-.160 [2.79-4.06] long.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.045 + .002 [1.14 + .05] dia.

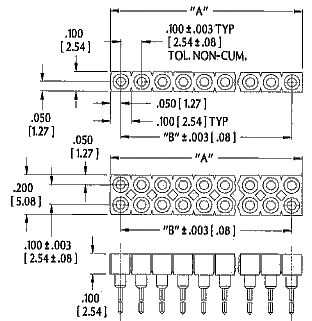

"A"= No. of Pins per Row X .100 [2.54]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

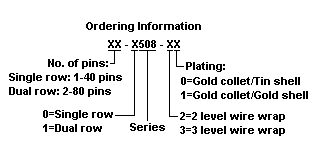

Series X508
Single and Dual
Row Collet Sockets
with Wire Wrap Pins
