Aries Electronics

-1 dB bandwidth at 10 GHz.
Manual/automatic, handler, and burn-in applications.
Suitable for all peripheral surface mount devices.
Solderless, pressure-mount contact.
Microstrip contact design.
Wide-blade contacts with scrub action.
Replaceable contact blocks available.
Mounting hardware included.
Patent pending design.

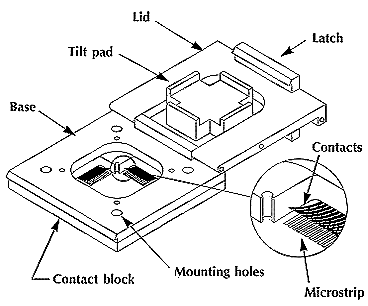

Base, lid, and latch are Nickel plated Aluminum.
Contact block is UL 94V-0 Thermoplastic.
Contacts are stainless steel plated with 30-50 u [.76-1.27 um] Gold per MIL-G-45204.
All hardware is stainless steel.
Bandpass: DC to > 10 GHz.
Contact resistance = 30m ohm.
Contact Self Inductance < .010n H.
Contact Mutual Inductance < .05n H.
Contact Mutual Capacitance > .05 pF.
Operating temperature= -67°F to 338°F [-55°C to 170°C].
Contact durability > 500,000 cycles.
Housing durability > 1,000,000 cycles.

High Performance
RF Test Sockets
