FEATURES:
 Design your own DIP socket by assigning each pin its own resistance value and tolerance (or none if no resistance is required). Standard resistor values apply.
Open frame allows for more efficient utilization of board space and better cooling.
SPECIFICATIONS:
Body material is black UL 94V-0 Glass-filled Polyester Thermoplastic (PET).
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per
UNS C17200 ASTM-B194-92.
Contact plating is 10 u [.25 um] Gold per MIL-G-45204
over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=1 .0 Amp.
Operating temperature=221°F [125°C].
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal
force=140 grams/pin; based on a .018 [.46] dia. test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .100-.125 [2.54-3.18] long.

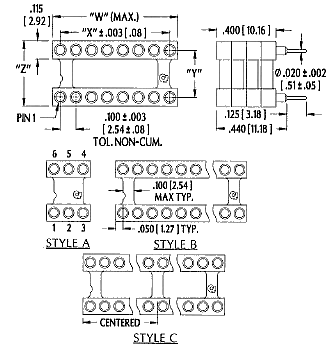

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.030 + .003 [.76+ .08] dia.
"W"=No. of Pins per Row X .100 [2.54]
"X"=(No. of Pins per Row -1) X .100 [2.54]
|
