Aries Electronics

Mini-LinkTM miniature jumpers are useful for jumpering .025 [.63] square pins on .100 [2.54] centers.
Used to jumper from row-to-row or from pin-to-pin.
Their miniature size makes it possible to stack one on top of the other.
Jumper terminal is partially exposed for testing.
Sold in multiples of 1000.

Body material is black UL 94V-0 Glass-filled Polyester Thermoplastic.
Contacts are Phosphor Bronze.
Contact plating is Tin over Nickel.
Contact current rating = 3 Amps.
Contact resistance = 15m Ohms max.
Withstanding voltage=650 VAC (RMS).
Insulation resistance=1000M Ohms min.
Operating temperature=-67°F to 248°F [-55°C to 120°C].
Minimum insertion depth=.177 [4.50].

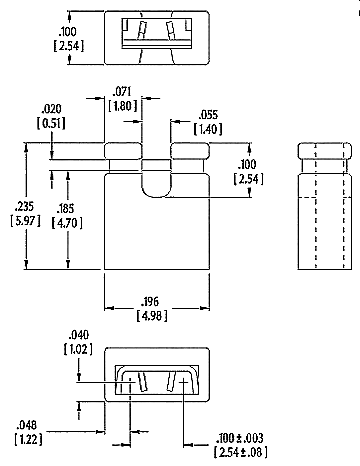

Series ME-100
Economy Mini-LinkTM
Miniature Jumper
