FEATURES: Aries' Correct-A-Chip ^tm Circuit-Bridge^tm headers are programmed to your specifications via a miniature PCB, eliminating the need for an extra PC board layer. Available with an unlimited number of pins on practically any center pitch "C". Consult Beckwith Electronics for details. Non-molded Circuit Bridge^tm technology is most economical in high quantity production. Low profile. Utilize Aries' easy-to-use worksheet, Data Sheet No. 18001, when ordering. SPECIFICATIONS: PCB is black FR-4 with 1 oz. min. Copper traces. Style 1 pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85. Style 2 pin plating is 100 u [2.54 um] min. 93/7 Tin/Lead per MIL-P-81728 over 50 u [1.27 um] min. Nickel per QQ-N-290. Style 1 pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85. Style 2 pin plating is 200 u [5.08um) min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290. Operating temperature=221°F [105°C]. Current rating=1 Amp. MOUNTING CONSIDERATIONS: Suggested PCB hole size=.028 + .003 [.71 + .08] dia. "A"=No. of Pins per Row X .100 [2.54] "B"=(No. of Pins per Row -1) X .100 [2.54] "D"=Dim. "C" + .100 [2.54]	Circuit-Bridge^tm Programmed Headers for High Volume Applications Correct-A-Chip^tm Technology

FEATURES:

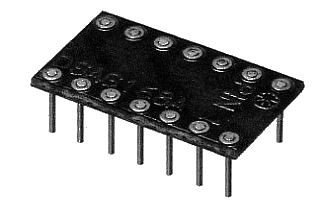

Aries' Correct-A-Chip ^tm Circuit-Bridge^tm headers are programmed to your specifications via a miniature PCB, eliminating the need for an extra PC board layer.

Available with an unlimited number of pins on practically any center pitch "C". Consult Beckwith Electronics for details.

Non-molded Circuit Bridge^tm technology is most economical in high quantity production.

Low profile.

Utilize Aries' easy-to-use worksheet, Data Sheet No. 18001, when ordering.

SPECIFICATIONS:
PCB is black FR-4 with 1 oz. min. Copper traces.
Style 1 pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Style 2 pin plating is 100 u [2.54 um] min. 93/7 Tin/Lead per MIL-P-81728 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Style 1 pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Style 2 pin plating is 200 u [5.08um) min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Operating temperature=221°F [105°C].
Current rating=1 Amp.

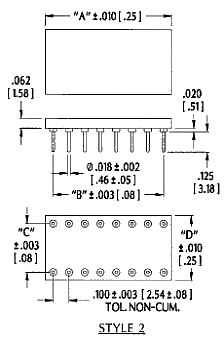

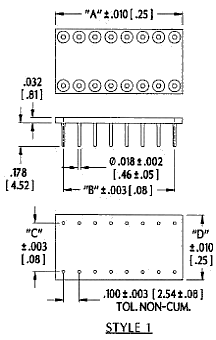

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .003 [.71 + .08] dia.

"A"=No. of Pins per Row X .100 [2.54]
"B"=(No. of Pins per Row -1) X .100 [2.54]
"D"=Dim. "C" + .100 [2.54]

Circuit-Bridge^tm
Programmed Headers for High Volume Applications
Correct-A-Chip^tm Technology
