FEATURES:
 Correct-A-Chiptm technology solves problems associated with the use of alternate ICs (due to availability, obsolescence, need for better performance, etc.) by eliminating the need for new PCBs.
Priced lower in high volume than our standard Correct-A-Chiptm with molded housing, collet contacts.
Available with either .300 [7.62] or .600 [15.24] row-to-row spacing.
SPECIFICATIONS:
Female socket material is black UL 94V-0 Glass-filled Polyester Thermoplastic (PET).
PCB is black FR-4, .062 [1.56] or .094 [2.39] thick.
Male pin is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Male pin plating is 200 u [5.08 um] min. 93/7 Tin/Lead per
MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Female pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Female pin body plating is 10 u [.254 um] min. Gold per MIL-G-45204 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 10 u [.254 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Minimum contact current rating = 1 Amp @ 5 VDC.
Operating temperature = 221°F [105°C].
Insertion Force = 180 grams/pin; Withdrawal Force = 90 grams/pin; Normal Force = 140 grams/pin; based on a .018 [.46] diameter test lead.
Socket accepts leads .015 -.025 [.38-.64] in diameter, .100-.125 [2.54-3.18] long.
MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .002 [.71 + .05] dia.
|
Collet Contacts
Correct-A-Chiptm Technology

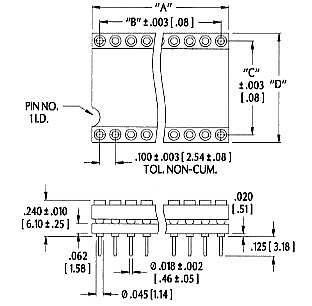

Centers
"C" |
Dim
"D" |
Body
Style |
Available
Sizes |
.300
[7.62] |
.400
[10.16] |
2
1 |
2 thru 20
22 thru 40 |
.600
[15.24] |
.700
[17.78] |
2
1 |
2 thru 40
42 thru 48 |
|
