Aries Electronics

FEATURES:
These DIP strips are used in conjunction with Aries' Shorting Jack SJ200, available separately, for your programming needs.

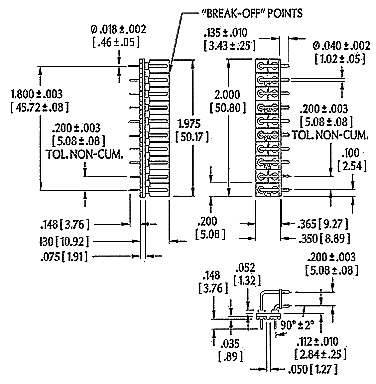

Available with straight or right angle pins.
"Break" feature allows strips to be cut to any number of positions desired.

SPECIFICATIONS:

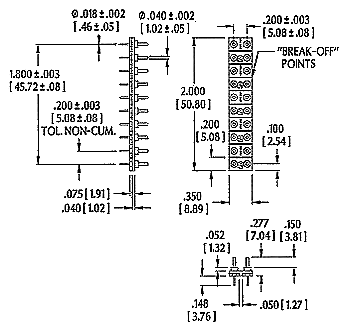

Standard DIP strip (20-M40-11) body material is black UL 94V-0 Glass-filled Nylon. Right angle DIP strip (20-M40-9X) body material is black UL 94V-0 Glass-filled Nylon.
Pin is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin plating is 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Optional pin plating is 100 u [2.54 um] min. 93/7 Tin/Lead per MIL-P-81728 over 50 u [1.27 um] min. Nickel per QQ-N-290 (available on right angle DIP strips only).
Current rating=3 Amps.
Operating temperatures:
     = 221°F [105°C] Tin plating,
     = 257°F [125°C] Gold plating.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .002 [.71 + .05] dia.

Series M40
Thru-Hole .040 [1.02]
Male DIP Strips
